The 1st step is to prepare the die halves for casting by cleaning the faces of each die then applying lubrication or release agent.
Once the die has been prepared, the die halves are closed and clamped together with pressure applied from the die-cast machine.
The clamping force will depend upon the size of the machine but must be more than the opposing force trying to open the die during the casting process.
The injection phase:
The ingots are added to the furnace and kept molten at a set temperature according to the metal being used.
The molten metal is transferred to an injection chamber and injected into the closed die pressure ranging from 1000 to 20,000 psi.
The pressure is maintained while the metal solidifies.
The amount is injected into the die is known as the ‘shot’
The injection of metal into the die is very short, this ensures the metals do not start to solidify before the die is completely filled.
The cooling phase:
After the injection is complete, the molten metal needs to solidify before the die is opened.
The cooling time will depend upon the part geometry as well as the metal thermodynamic properties.
The wall thickness of the parts plays a big factor in the cooling time, the thicker the wall section the longer the cooling time required.
The ejection phase:
After the cooling time has elapsed, the two die halves can be opened.
An ejection mechanism then pushes the solidified casting out of the die.
The force of the ejection will be determined by the size of the part, bearing in mind, the part shrink during the cooling process and tends to stick to the die surface.
Once the part has been ejected, the die can be closed ready for the next injection cycle.
The trimming phase
During the cooling and solidification phase, the casting will solidify as a complete cast unit which includes the part, flash, and any runner system
This excess material must be trimmed off to leave just the main cast product.
Method of trimming includes trim tools, band saw are manually clipping.
Any trimmed metal is either scrapped or recycled if permitted.
Advantages of die casting:
Die casting is fast
Die casting can be produced in seconds each part and quantities of hundreds to thousands of metal parts each day.
Near net shape
Die casting are produced “near net shapes” no matter how complex the shape are how tight the tolerances are.
Lighter weights
Die casting are stronger because of the material surface skin not the thickness of materials so parts can weigh less with thinner casting wall thicknesses.
Die casting is versatile
Many more part shapes and sizes can be produced using the die casting manufacturing process.
Die casting are durable
Die castings parts are metal and have a long service life.
Die castings are inexpensive
Die castings are fast to produce and useless material. Die casting are typically less expensive than most other metal parts manufacturing processes.
https://www.thediecasting.com/wp-content/uploads/2019/04/Die-Casting-manufacture-company.jpg300400adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2019-09-25 10:28:042019-09-16 10:31:28The Die Casting Process Step By Step

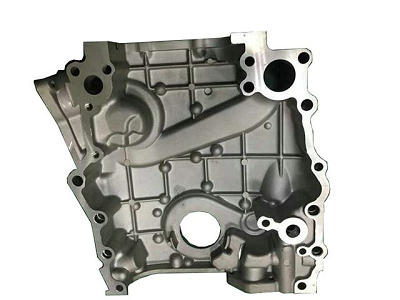

CNM Die Casting has the ability to offer various castings including die casting, investment casting, permanent mould casting, and sand casting for a wide range of alloys, including all die-cast alloys, many permanent mold alloys, and many magnesium alloys.
Our manufacturing processes have been accepted by the world casting market as equal or superior to conventional die casting.
Benefits of the CNM Die Casting Process
Better dimensional control
Improved cross parting line tolerances
Reduction in gas porosity
Improved balance properties of finished rotating parts Use of “cast-in-place” inserts Improved mechanical properties due to effective alloy modification Better wear properties due to smaller grain size microstructure Improved flexibility regarding alloys and types of castings
Machining
CNM Die Casting’s Machining Section utilizes the work cell concept and high-speed flexible machining equipment to complete secondary operations to CNM’s castings so that a part or subassembly is ready to install when it leaves our facility.
CNM Die Casting has evolved and responded aggressively to customer demands for providing high-speed machining and assembly services without initial capital expenditures. By factoring a portion of the cost of the existing equipment into each part, the customer benefits from faster set-ups and minimal initial capital outlays.
CNM Die Casting operates 8 die cast machines, complete in-house die casting mold making and CNC machining in an over 20,000-square-foot facility in DONGGUAN, China.
Our integrated manufacturing capabilities, together with over 100 employees, allow us to be your One-Stop, complete service die caster, and be consistently price competitive, while also maintaining a high standard of quality.
https://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpg00adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2019-04-19 11:33:522019-06-08 11:41:33Die Casting Process
Die casting is a manufacturing process for producing accurately dimension, sharply defined, smooth or textured-surface metal parts. It is accomplished by forcing molten metal under high pressure into reusable metal dies. The process is often described as the shortest distance between raw material and finished product. The term, “die casting,” is also used to describe the finished part. The term “gravity die casting” refers to castings made in metal molds under a gravity head. It is known as permanent mold casting in the U.S.A. and Canada. What we call “die casting” here is known as “high pressure die casting” in Europe.
First, a steel mold capable of producing tens of thousands of castings in rapid succession must be made in at least two sections to permit removal of castings. These sections are mounted securely in a machine and are arranged so that one is stationary (fixed die half) while the other is moveable (injector die half). To begin the casting cycle, the two die halves are clamped tightly together by the die casting machine. Molten metal is injected into the die cavity where it solidifies quickly. The die halves are drawn apart and the casting is ejected. Die casting dies can be simple or complex, having moveable slides, cores, or other sections depending on the complexity of the casting. The complete cycle of the die casting process is by far the fastest known for producing precise non-ferrous metal parts. This is in marked contrast to sand casting which requires a new sand mold for each casting. While the permanent mold process uses iron or steel molds instead of sand, it is considerably slower, and not as precise as die casting.
TYPES OF MACHINES FOR DIE CASTING
Regardless of the type of machine used, it is essential that die halves, cores and/or other moveable sections be securely locked in place during the casting cycle. Generally, the clamping force of the machine is governed by (a) the projected surface area of the casting (measured at the die parting line) and (b) the pressure used to inject metal into the die. Most machines use toggle type mechanisms actuated by hydraulic cylinders (sometimes air pressure) to achieve locking. Others use direct acting hydraulic pressure. Safety interlock systems are used to prevent the die from opening during the casting cycles. Die casting machines, large or small, very fundamentally only in the method used to inject molten metal into the die. These are classified and described as either hot or cold chamber die casting machines.
HOT CHAMBER MACHINES Hot chamber machines (Fig.1) are used primarily for zinc, and low melting point alloys which do not readily attack and erode metal pots, cylinders and plungers. Advanced technology and development of new, higher temperature materials have extended the use of this equipment for magnesium alloy die casting. Figure 1: Hot Chamber Machine. Diagram illustrates the plunger mechanism which is submerged in molten metal. Modern machines are hydraulically operated and equipped with automatic cycling controls and safety devices. In the hot chamber machine, the injection mechanism is immersed in molten metal in a furnace attached to the machine. As the plunger is raised, a port opens allowing molten metal to fill the cylinder. As the plunger moves downward sealing the port, it forces molten metal through the gooseneck and nozzle into the die. After the metal has solidified, the plunger is withdrawn, the die opens, and the resulting casting is ejected. Hot chamber machines are rapid in operation. Cycle times vary from less than one second for small components weighing less than one ounce to thirty seconds for a casting of several pounds. Dies are filled quickly (normally between five and forty milliseconds) and metal is injected at high pressures (1,500 to over 4,500 psi). Nevertheless, modern technology gives close control over these values, thus producing castings with fine detail, close tolerances and high strength.
COLD CHAMBER MACHINES
Cold chamber machines (Fig. 2) differ from hot chamber machines primarily in one respect; the injection plunger and cylinder are not submerged in molten metal. The molten metal is poured into a “cold chamber” through a port or pouring slot by a hand or automatic ladle. A hydraulically operated plunger, advancing forward, seals the port forcing the metal into the locked die at high pressures. Injection pressures range from 3,000 to over 10,000 psi for both aluminum and magnesium alloys, and from 6,000 to over 15,000 psi for copper base alloys.
Figure 2: Cold Chamber Machine. Diagram illustrates die, cold chamber and horizontal ram or plunger (in charging position). Die casting provides complex shapes within closer tolerances than many other mass production processes. In a cold chamber machine, more molten metal is poured into the chamber that is needed to fill the die cavity. This helps sustain sufficient pressure to pack the cavity solidly with casting alloy. Excess metal is ejected along with the casting and is part of the complete shot. Operation of a “cold chamber” machine is a little slower than a “hot chamber” machine because of the ladling operation. A cold chamber machine is used for high melting point die casting alloys because plunger and cylinder assemblies are less subject to attack since they are not submerged in molten metal. CASTING DIES AND THEIR CONSTRUCTION
Die casting dies (Fig. 3) are made of alloy tool steels in at least two sections called fixed die half and ejector die half. The fixed die half is mounted on the side toward the molten metal injection system. The ejector die half, to which the die casting adheres, and from which it is ejected when the die is opened, is mounted on the moveable platen of the machine.
The fixed die half of the die is designed to contain the sprue hole through which molten metal enters the die. The ejector half usually contains the runners (passageways) and gates (inlets) which route molten metal to the cavity (or cavities) of the die. The ejector half is also connected to an ejector box which houses the mechanism for ejecting the casting from the die. Ejection occurs when pins connected to the ejector plate move forward to force the casting from the cavity. This usually occurs as part of the opening stroke of the machine. Placement of ejector pins must be carefully arranged so force placed upon the casting during ejection will not cause deformation. Return pins attached to the ejector plate return this plate to its casting position as the die closes. Fixed and moveable cores are often used in dies. If fixed, the core axis must be parallel to the direction of die casting mold opening. If moveable, they are often attached to core slides. Should the side of a die casting design require a depression, the die can be made with one or more slides to obtain the desired result without affecting ejection of the casting from the die cavity. All moveable slides and cores must be carefully fitted, and have the ability to be securely locked into position during the casting cycle. Otherwise, molten metal could be forced into their slideways causing a disruption of operations. Although slides and cores add to the complexity and cost of die construction, they make it possible to produce die castings in a wide variety of configurations, and usually more economically than any other metalworking process. TYPES OF DIES
Dies are classified as: single cavity, multiple cavities, combination and unit dies (Figures 4-A to 4-D).
A single cavity die requires no explanation. Multiple cavity dies have several cavities which are all identical. If a die has cavities of different shapes, it’s called a combination or family die. A combination of die is used to produce several parts for an assembly. For simple parts, unit dies might be used to effect tooling and production economies. Several parts for an assembly, or for different customers, might be cast at the same time with unit dies. One or more unit dies are assembled in a common holder and connected by runners to a common opening or sprue hole. This permits simultaneous filling of all cavities.
ADVANTAGES OF DIE CASTING
Die casting component parts, decorative trim, and/or finished products offer many features, advantages and benefits to those who specify this manufacturing process.
Die castings are produced at high rates of production. Little or no machining is required.
Die castings can be produced with thinner walls than those obtainable by other casting methods … and much stronger than plastic injection moldings with the same dimensions.
Die casting provide parts which are durable, dimensionally stable, and have the feel and appearance of quality.
Die casting dies can produce thousands of identical castings within specified tolerances before additional tooling may be required.
Zinc die castings can be easily plated or finished with a minimum of surface preparation.
Die castings can be produced with surfaces simulating a wide variety of textures.
Die-cast surfaces, as cast, are smoother than most other forms of casting.
Holes in die castings can be cored and made to tap drill sizes.
External threads on parts can be readily die cast.
Die castings provide integral fastening elements, such as bosses and studs, which can result in assembly economies.
Inserts of other metals and some non-metals can be die cast in place.
Corrosion resistance of die casting alloys rates from good to high.
Die castings are monolithic. They combine many functions in one, complex shaped part. Because die castings do not consist of separate parts, welded or fastened together, the strength is that of the material, not that of threads or welds, etc.
Die Casting process can producealuminum die casting, magnesium die casing, zinc die casting, brass die casting , lead casting and so on, and all of those can be easily massive produced.
Die casting is an efficient, economical process which, when used to its maximum potential, replaces assemblies of a variety of parts produced by various manufacturing processes at significant savings in cost and labour. COMPARISONS WITH OTHER PRODUCTS
Plastics injection molding Parts
Compared with plastic injection molding Parts, die castings are the stronger, stiffer, more stable dimension, more heat resistant, and are far superior to plastics on a properties/cost basis. They help prevent radio frequency and electromagnetic emissions. For chrome plating, die castings are much superior to plastic. Die castings have a high degree of permanence under load when compared to plastics, are completely resistant to ultra-violet rays, weathering, and stress-cracking in the presence of various reagents. Manufacturing cycles for producing die castings are much faster than for plastic injection moldings. Plastics, however, may be cheaper on a unit volume basis, have colour inherent properties which tend to eliminate finishing, are temperature sensitive, and are good electrical insulators.
Sand castings
Compared with sand castings, die castings require much less machining; can be made with thinner walls; can have all or nearly all holes cored to size; can be held within much closer dimensional limits; are produced more rapidly in dies which make thousands of die castings without replacement; do not require new cores for each casting; are easily provided with inserts die cast in place; have smoother surfaces and involve much less labor cost per casting. Sand castings, on the other hand, can be made from ferrous metals and from many non-ferrous alloys not suitable for die casting. Shapes not producible by die casting are available in sand castings; maximum size can be greater; tooling cost is often less and small quantities can be produced more economically. you can check more sand aluminium casting
Permanent mold castings
Compared with permanent mold castings, die castings can be made to closer dimensional limits and with thinner sections; holes can be cored; are produced at higher rates with less manual labour; have smoother surfaces and usually cost less per die casting. Permanent mold casting involves somewhat lower tooling costs; can be made with sand cores yielding shapes not available in die casting. Forgings Compared with forgings, die castingscan be made more complex in shape and have shaped not forgeable; can have thinner sections; be held to closer dimensions and have coring not feasible in forgings. Forgings, however, are denser and stronger than die castings; have properties of wrought alloys; can be produced in ferrous and other metals and in sizes not suitable for die castings. Stamping Compared with stamping, one die casting can often replace several parts. Die castings frequently require fewer assembly operations; can be held within closer dimensional limits; can have almost any desired variation in section thickness; involve less waste in scrap; are producible in more complex shapes and can be made in shapes not producible in stamped forms. Stamping, on the other hand, have properties of wrought metals; can be made in steel and in alloys not suitable for die casting; in their simpler forms, are produced more rapidly; and may weigh less than die castings. Screw machine products Compared with screw machine products, die castings are often produced more rapidly; involve much less waste in scrap; can be made in shapes difficult or impossible to produce from the bar or tubular stock, and may require fewer operations. On the other hand, screw machine products can be made from steel and alloys which cannot be die cast; they have the properties of wrought metals, and they require less tooling expense.
https://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpg00adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2018-10-13 22:41:192019-06-08 11:32:13What Is Die Casting
CNM TECH. is a high pressure die casting manufacturer in China founded in 1999 and backed by a family that has 18 years of experience in high pressure die casting manufacturing business.
We specialize in high-quality, small- to medium-large volume aluminium die casting, magnesium die casting, and zinc die castingservices, while also offering other casting and mechanical component manufacturing solutions. With our ISO 9001 certified production and quality control systems, we provide global customers with the highest quality pressure die casting services. In addition, we offer secondary operations and light mechanical assemblies. such as CNC machining, surface treatment including powder coating, painting etc. CNM TECH. is one of the best internationally known casting suppliers in China. Our experienced and English-speaking engineers and our worldwide sales staff provide excellent pre-sale and production support.
High pressure die casting process
In this process, the liquid metal is injected at high speed and high pressure into a metal mold. A schematic view of high pressure die casting is given in Figure.
This equipment consists of two vertical plates on which bolsters are located which hold the die halves. One plate is fixed and the other can move so that the die can be opened and closed. A measured amount of metal is poured into the shot sleeve and then introduced into the mould cavity using a hydraulically-driven piston. Once the metal has solidified, the die is opened and the casting removed. Compared to Gravity die casting, both the machine and its dies are very expensive, and for this reason, high pressure die casting is economical only for high-volume production.
Services We offer
High pressure die Casting parts and molds in aluminum, magnesium and zinc alloy
Light Mechanical Assembly, including stud and helicoil inserts, O-ring, gasket
Laser Cutting and Engraving
Etching
If you need any supporting in die casting parts you are welcome to contact us, we would happy to support, no matter you need technical supporting or price for your project.
Different Between Aluminum Die Casting and Gravity Casting
Aluminium Die Casting is more than just an excuse to play with the molten metal it is actually a great way to create art and complicated pieces of machinery or other items that would otherwise be nearly impossible to make. Aluminum die Casting is really a great way to save money…while playing with molten metal.
The reason that aluminum die Casting has survived the test of time is a matter of efficiency. Some of the earliest casting examples have been found in China dating back thousands and thousands of years. In fact, every major civilization from the Egyptians to the Romans practised aluminum casting. This skill came back into vogue during the Renaissance and has continued to advance and evolve from there. While Sand Casting is the most popular casting process there are many, many more processes available to the backyard foundries.
Not everyone is going to be casting heavy pieces like engine parts or cast their own motorcycles. So for those that just want to make decorative pieces, you will not be using the same casting process as these heavy duty casters. For artists creating small scale statues or embellishes and for hobbyists that need a decorative touch to their model plane or boat might want to consider using gravity casting for their needs.
What is Gravity Casting
Gravity Casting seems to be especially useful when dealing with aluminum and other light alloys. The basic idea behind this casting process is pretty much exactly what the name suggests. The metal is introduced into the mold by the force of gravity. Most other casting process either use natural pressure difference like the kind in certain sand casting procedures or they use forced pressure like in centrifugal casting to get the molten metal into the mold.
One of the most common uses for gravity casting is when permanent molds are going to be used. Also called a die, the permanent mold is really only economical for those planning on using the same mold numerous times and will need to keep the quality at a constant level. While some temporary molds can be repeatedly used the quality of the finished product will begin to suffer over time. With die molds the quality will remain the same. Die molds should be seen as an investment. Yes, they will be more costly than other molds; however, they will outlast cheaper options for molds. With Permanent molds, they are created using cast iron, steel, and other metals.
Gravity casting is used for the permanent mold process with pleasing results. Gravity casting is usually used when the finished product is more visually based then structurally based which is why this method is a favourite of artists and even some jewellers. The loss of strength is due to the lack of pressure used in this process. For those that need the strength but still want to use gravity casting, more of the molten metal will need to be used which will increase the weight. go to https://www.aludiecasting.com/ to know more about gravity casting
Relying on gravity will take patience, although it will be needed for larger products.
If you need gravity casting or aluminum die casting, magnesium die casting or zinc die casting service for your business. You are welcome to send us your requirement for quote, you only need to send us your 3D part design and your requirement, then you can sit back and we will do there rest for you, to work with us you only need to take care of the market at your side, and we will be your back up to take care of lead time, shipment, quality and technical.
Casting is a process in which molten metal is poured into a mould that contains the intended shape. High pressure die casting (HPDC) is the most common method of Magnesium Die Casting and its alloys.
Magnesium is melted at a temperature of 923K and poured into crucibles where it is cooled under high pressure. The cooled magnesium solidifies and takes the shape of the crucible.
Magnesium has an inflexible hexagonal structure at its basic atomic level which makes it difficult to roll, stretch and shape. HPDC overcomes this limitation by offering an alternative, less difficult and faster method for manipulating Magnesium.
Uses of Magnesium die casting
Magnesium is increasingly used in automotive and airplane manufacturers. This is due to its lightweight per unit volume. Casted Magnesium is also used in the manufacture of lightweight car seats, car bodies, and fuselage parts. The use is attributed to Magnesium is the lightest structural metal which can withstand greater column loading per unit weight.
Magnesium and its alloys are being used to manufacture chassis for appliances such as laptops, cameras, and phones.
Magnesium castings are also used in the manufacture of power tools such as chain saws, electric drills, and electric nail guns. The use of electrical appliances is gaining ground owing to its ability to conduct heat and electricity.
Magnesium casting offers good finishing characteristics as minute details can be impressed onto the final product. High pressure dies casting is more economical compared to other methods of shaping Magnesium.
In this green era, the ability to recycle Magnesium makes High pressure die casting an environmentally friendly process. Magnesium metal is almost 100% recyclable thus reduces industrial junk.
Casted Magnesium alloys have high conductivity. There is marked improvement in the electrical and thermal conduction capabilities in Magnesium alloys making them suitable for use in electrical and thermal appliances.
Magnesium and its alloys can be cast into various shapes suited for different uses; Casting into thin walls can be achieved. Since Magnesium saves on weight without reducing durability, Magnesium thin walls are relatively stronger and lighter as compared to other metals of the same volume.
It has been noted that molten Magnesium has reduced affinity to iron thus can be cast in iron crucibles with a reduced risk in the final product acquiring iron impurities.
Casted Magnesium is resistant to corrosion by the elements, most notably, is the reduced susceptibility to Hydrogen porosity.
Disadvantages of high pressure die casting
Due to its very high melting point, melting Magnesium is both dangerous in safety and expensive process. A lot of energy is required to melt the Magnesium thus increasing the cost of production.
Moreover, the very high molten temperature of Magnesium can cause the liquid metal to take some of the iron from the crucible. Acquiring iron from the crucible is often undesirable as it would make the final product relatively impure.
Molten Magnesium is more viscous than other metals such as Aluminum. As a result, more pressure is required in the cooling process in an attempt to acquire the intended casting detail since cooling is often done under pressure.
To produce Magnesium die casting has high risk than producing Aluminium die casting, Magnesium is easy to get on fire since the ignition point is very low and it is hard to control this. this is why the cost is more expensive than Aluminum die casting. contact us to know more info.
Are you looking for the high quality and ultimate die casting services for your business? Well, you better need to hire the right service provider who must be experienced in the very same domain. Yes, it is highly necessary to invest some time who can offer very high-quality results and that is by paying the very affordable amount.
Before we talk about how to find the right company, it is highly necessary to know more about Die casting. Well, this is the most important manufacturing technology which is used by many industries which are looking for all sorts of parts to commence the work and for that it is necessary to go with the aluminum die castingprocess. With the help of die casting mold, it will help in molding the complexity of the metal substance exactly in the same manner as you are looking to have. Yes, the final product can have virtually any size depending on what designer desires, thus there is nothing impossible for the best and great service providers at all.
When it comes to finding a right service provider for aluminum casting parts, you better invest time over the net and find out the most experienced, reliable and friendly service provider to meet the exact requirements without any fail. Also, you better find out someone who can easily work on any customized requirements of the clients as well as they must possess great goodwill in the market. Also, you can investigate their previous projects and check how best they are in the die casting and how they have helped other companies to complete their requirements. Not only this, even, you need to disclose them the complete information about your project requirements and check how well they are in offering you the correct guidance as well as what price they are quoting you up. Even, you can do this with different sources and go up with the best one who offers great services at the best prices.
die casting
Moving up with the pro means they will consider mechanical properties, including tensile strength, yield, impact, hardness, and other various specifications in advance to offer you the best solutions. Not only this, pros will help in picking up the right metal which they perform by checking out the physical properties of the metal. Yes, before going up with the aluminum die casting, it is very important to know more about its conductivity or how it behaves under extreme stress or heat. Pros also determine the composition of different alloys, check what are the common uses for the primary element, they also check out a complete list of die-cast alloys, check out the needed properties, and everything to offer you something the best to meet your exact requirements.
Why don’t you check out to go to the suggested source? Well, it will offer you the best services by offering you the casting of metal in the shortest possible of time, will make everything from the scratch and the best part is everything will be done in a budget-friendly manner.
Technology is improving day by day and we are the one enjoying it up fully. Today, we can have every possible thing to make our work the best as well as offer us full convenience and complete peace of mind.
Apart from others, talking about Die casting, it is a manufacturing process that can produce geometrically unique and impossible metal parts with the best use of reusable molds, called dies. The die casting process is very important and pros always make sure to use all the necessary things, called- furnace, metal, die casting machine, die and other various materials. The metal which is used here is always non-ferrous alloy, like- Zinc and aluminum, later it is melted in the furnace and then injected into the dies in the die casting machine for producing very complex metal parts.
It is always better to approach the right company for aluminum casting parts as they always go with the best and authentic procedures in order to produce something the best. They may use different types of die casting machines, called – hot chamber machines and cold chamber machines for a perfect die casting solution. Hot chamber machines are used for those alloys which have low melting temperatures, such as zinc. And Cold chamber machines are used for those alloys with high melting temperatures, such as aluminum. Both machines work the same and once they are done with the molten metal, they inject the same into the dies, wait for cooling it down and solidify into the final part, called the casting.
Aluminum die casting tooling is also known as dies, is here just for alloying the steel. The dies are finished from at least two sections to allow casting elimination. To do so, there is a special need of the efficient approach of die casting and some go with the portable slides, with certain sections that can be done without difficulty to build the ideal shape as demanded by clients from die casters. In the procedure, die casting tooling goes with the simple production of the holes through the predetermined die half. Once we have the molten metal, it is then dispensed into the hole in order to dry in the cavity and this is the best way to get the specific dimensions contoured in the plating. Dies may also have to lock pins, which are utilized in order to stick together two halves and to take away the cast part. Always find the best and reliable service provider for aluminum die casting as well as who can easily manufacture miniature to large precision components using the broad range ofzinc die casting, aluminum and magnesium die casting alloys.
It is important to know that each and every alloy has unique physical characteristics to match your specific application. However, it is highly necessary to find out the right experts who can help you to meet your requirements by picking up the ideal material to manufacture your precision component. If you are looking for further assistance and help or need customized miniature just connect with the suggested source.
https://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpg00adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2018-03-30 11:02:352019-04-16 12:29:26Aluminum Casting Parts
Aluminum Die Casting: The Technology Behind High-Quality Industrial Parts
Aluminum die casting is a highly popular manufacturing technology, widely used in the production of high-quality industrial parts. This process is based on injecting liquid aluminum alloy into a die casting mould, which then cools and solidifies, forming the desired shape and design.
In this page, we’ll explore the manufacturing process of aluminum die casting, its advantages, applications, limitations, and future development.
The Manufacturing Process of Aluminum Die Casting
Aluminum die casting process is made by a professional aluminum die casting manufacturer, who use die casting molding process where molten aluminum alloy is injected into a steel mold or die, under high pressure, to produce a complex and intricate shape. The molten metal is forced into the mold cavity, where it cools and hardens, forming a solid part. The die casting mold is typically made of two halves that are clamped together during the process using a hydraulic system.
The aluminum die casting molding process involves several steps, including die casting mold preparation, melting the aluminum alloy, injection of the molten metal into the mold cavity, cooling and solidification of the metal, and ejection of the finished part from the mold.
Die Casting Mold Production
The die casting mold preparation involves designing the shape and size of the part using computer-aided design (CAD) software. The mold and its components are then manufactured using computer-controlled lathes or CNC machines. The mold is made of high-quality steel that can withstand the high temperatures and pressures of the process.
Aluminum-cast-road-stud
How to make aluminum alloy die casting tooling?
Aluminum alloy die casting tooling, also known as the die or mold, is an essential component of the die casting process. To make aluminum alloy die casting tooling, you can follow these steps:
Design the tooling: Aluminum die casting manufacturer will Create a 3D design of the tooling using computer-aided design (CAD) software. The design should be based on the specifications of the part you want to produce, so ensure that the measurements and features are correct.
Select the tooling material: The aluminum die casting manufacturer will choose the tooling material, the most common materials used for die casting tooling include steel, H13 steel, 8407 or aluminum. Steel is durable and can withstand high temperatures; H13 and 8407 steel are premium quality steel that offers the highest quality output, while aluminum is cost-effective for light-duty applications.
Create the tooling cavity: aluminum die casting manufacturer will machine the tooling cavity from the selected material using a CNC machine based on the design. The cavity should be precise, and it should have a proper grain structure for optimal part quality.
Add cooling system: Incorporate appropriate cooling systems, using customized drilling procedures, into the die to control the temperature and maintain high-quality output.
Finalize the tooling: Align the die half, and integrate additional necessary components such as ejector pins, moving chokes, and runner bars as needed. Then, both halves of the tooling are fixed together.
Test and verify: Finally, after the tooling is made, aluminum die casting manufacturer will test it to ensure that it operates correctly, and there are no defects in the parts produced.
By following these steps, aluminum die casting manufacturer can create durable and high-quality aluminum alloy die casting tooling. With proper usage and maintenance, the tooling can last for years, and it can produce consistent and precise parts.
Melting of Aluminum Alloy
Once die casting mold is ready, then move the mold into die casting molding machine to make aluminum die casting parts. The aluminum alloy is melted in a furnace and heated to a specific temperature. The alloy composition can vary, depending on the desired mechanical and physical properties of the finished part.
Injection of Liquid Alloy into Mold
Once the molten metal is ready, it’s injected into the mold cavity under high pressure, where it fills the space and conforms to the intricate shape of the mold. The high pressure ensures that the metal is evenly distributed throughout the cavity, and the part produced will have excellent surface finish, dimensional accuracy, and structural integrity.
Cooling and Ejection of Casting
After the metal has solidified, the mold is opened, and the finished part is ejected using hydraulic or mechanical systems. The part is then inspected for any defects or imperfections that could affect its performance.
Aluminum die casting offers numerous advantages, which make it a popular choice for many industries. Here are some of its benefits:
Lightweight and high strength: Aluminum is a lightweight but strong material, making it ideal for applications where weight reduction is essential, such as in the automotive industry.
Dimensional accuracy and stability: The mold production process ensures high dimensional accuracy and stability, reducing the need for further machining.
Good surface finish: Die casting produces high-quality surface finishes with low porosity, voids, and other defects, making it a popular choice for aesthetic components.
Easily fabricated and machined: Aluminum is easy to machine and fabricate, allowing for the creation of complex and intricate parts.
Applications of Aluminum Die Casting
Aluminum die casting has extensive applications, including the following:
Automotive industry: Aluminum die casting is used to produce many automotive components, such as engine blocks, transmission cases, and suspension parts. These components offer a combination of strength, durability, and lightweight, enhancing overall vehicle performance and fuel economy.
Aerospace industry: The aerospace industry also extensively uses aluminum die casting for producing parts like turbine blades and engine housings. The lightweight and high strength of aluminum make it an ideal choice for aerospace applications.
Electronic industry: In the electronic industry, aluminum die casting is used for producing components such as heat sinks, enclosures, and frames. The good thermal conductivity of aluminum makes it ideal for dissipating heat generated by electronic components.
Industrial machinery: Aluminum die casting is also used for producing complex components of industrial machinery such as pumps, compressors, and gears. The process produces high-quality and precision components that are essential for the equipment’s efficient operation.
The type of aluminum die casting material
There are many different types of aluminum die casting materials available, and the appropriate choice depends on a variety of factors including the desired properties of the final product, manufacturing considerations, and cost.
Here are some common types of aluminum die casting materials:
A380 aluminum alloy: This aluminum alloy is the most commonly used aluminum die casting alloy. It has excellent casting properties, offers good strength and hardness at high temperatures, and is relatively inexpensive.
Metals Type Analysis
Nominal Value
Unit
Type Analysis
Aluminum (Balance)
80.3 to 83.3
%
Copper
3.00 to 4.00
%
Iron
1.30
%
Magnesium
0.100
%
Manganese
0.500
%
Nickel
0.500
%
Other Elements
0.500
%
Silicon
7.50 to 9.50
%
Tin
0.350
%
Zinc
3.00
%
A383 aluminum alloy: Similar to A380, A383 offers improved thermal properties and is more resistant to heat-related warping. It is used for parts that require higher levels of heat resistance and thermal stability.
Metals Type Analysis
Nominal Value
Unit
Type Analysis
Carbon
< 0.0250
%
Chromium
27.0
%
Copper
1.00
%
Manganese
1.00
%
Molybdenum
3.50
%
Nickel
31.0
%
Phosphorus
< 0.0250
%
Silicon
0.800
%
Sulfur
< 0.0200
%
A360 aluminum alloy: This aluminum alloy is similar to A380 but contains more silicon. It provides improved fluidity, making it a good choice for complex parts that require thin walls or intricate designs.
Metals Type Analysis
Nominal Value
Unit
Type Analysis
Aluminum (Balance)
86.0 to 87.2
%
Copper
< 0.600
%
Iron
< 1.30
%
Magnesium
0.400 to 0.600
%
Manganese
< 0.350
%
Nickel
< 0.500
%
Silicon
9.00 to 10.0
%
Tin
< 0.150
%
Zinc
< 0.500
%
ADC10 and ADC12 aluminum alloy: These are two Japanese aluminum die casting alloys that are similar to A380 and A383, respectively. They offer excellent casting properties, high strength, and good corrosion resistance.
Metals Type Analysis
Nominal Value
Unit
Type Analysis
Aluminum (Balance)
80.3 to 83.3
%
Copper
3.00 to 4.00
%
Iron
1.30
%
Magnesium
0.100
%
Manganese
0.500
%
Nickel
0.500
%
Other Elements
0.500
%
Silicon
7.50 to 9.50
%
Tin
0.350
%
Zinc
3.00
%
A365 aluminum alloy: A365 aluminum alloy is known for its high strength-to-weight ratio, good corrosion resistance, and good machinability. It is commonly used in the manufacturing of aerospace and aircraft components, such as landing gear and structural parts, as well as in automotive and industrial applications.
Metals Type Analysis
Nominal Value
Unit
Type Analysis
Carbon
0.150 to 0.200
%
Chromium
10.0 to 11.5
%
Manganese
0.500 to 0.800
%
Molybdenum
0.800 to 1.10
%
Nickel
0.300 to 0.600
%
Niobium
0.350 to 0.550
%
Nitrogen
0.0400 to 0.0800
%
Phosphorus
< 0.0200
%
Silicon
0.200 to 0.600
%
Sulfur
< 0.0150
%
Vanadium
0.150 to 0.250
%
Each of these materials has unique properties and benefits. When selecting a material for die casting, it’s important to consider the specific needs and requirements of the application to select the most appropriate material.
Aluminium-mold
Challenges and Limitations of Aluminum Die Casting
Although aluminum die casting offers many benefits, it also has some limitations and challenges, including the following:
Production cost and complexity: The production cost of aluminum die casting can be relatively high compared to other manufacturing methods, mainly due to the high cost of molds and casting machines. The complexity of the process can also make it difficult to manufacture small quantities of parts efficiently.
Environmental concerns: The process can generate significant amounts of waste by-products, such as emissions and wastewater. Manufacturers must implement appropriate environmental controls to minimize the impact.
Limited alloy options: Unlike other processes such as investment casting, which can produce a range of alloys, die casting is limited to producing only a few aluminum alloys.
How to make aluminum die casting prototypes?
Aluminum die casting prototypes can be made by following these steps:
Design the part: The first step is to create a 3D design of the part using computer-aided design (CAD) software. This design will be used to create the mold for the die casting process.
Create the mold: Once the design is complete, a mold must be created. This can be done using a CNC machine to create the mold out of steel or aluminum.
Select the appropriate aluminum alloy: Different aluminum alloys have different properties. Select the appropriate alloy based on the properties needed for the specific prototype.
Prepare the furnace: Prepare the furnace and fill it with the selected aluminum alloy. Heat it to the optimal temperature, which will vary depending on the alloy used.
Inject the metal: Once the temperature has been reached, the molten metal is injected into the mold cavity under high pressure. The high pressure helps to ensure that the metal is distributed evenly and accurately within the mold.
Cool and eject the part: After the metal has been injected into the mold, it is allowed to cool and harden. Once it has cooled and hardened, the part is ejected from the mold.
Finish the prototype: After the part is ejected from the mold, any additional finishing or machining can be done as needed to create a fully functional prototype.
The process of creating an aluminum die cast prototype is similar to the process used for creating a full production run. The main difference is that a more basic mold is used for the prototype, allowing for a much quicker turnaround time.
How to control the tight tolerance of aluminum die casting machining?
Controlling tight tolerances in aluminum die casting machining is crucial for producing high-quality and consistent parts. Here are some steps that can help control the tight tolerance of aluminum die casting machining:
Proper equipment: Select the right machine tools and equipment that can achieve tight tolerances. High precision machines with advanced programming capabilities are necessary for maintaining tight tolerances.
Process control: Maintain consistent process control by using a statistical process control (SPC) system that can detect variations in the process. The use of SPC will help identify and diagnose the sources of variation and control them.
Material selection: Use high-quality materials that have consistent and predictable properties that will not interfere with the machining process.
Tool selection: Select appropriate cutting tools, such as carbide, as they have excellent wear and heat resistance, and they are more precise than other materials.
Tool maintenance: Regular maintenance of the cutting tools and CNC equipment is necessary for maintaining tight tolerances. The tools must be kept in good condition through frequent maintenance to prevent wear that may interfere with the tolerance of the parts.
Quality Checks: Regular quality checks are essential to maintaining tight tolerances. Each part must be closely inspected to ensure that the required tolerances are met.
Continuous Improvement: Continuously look for opportunities for improvement in the process. Apply the lessons learned from each part to improve future production, which will lead to better precision.
By following these steps, you can maintain tight tolerances in aluminum die casting machining, which can lead to the production of high-quality and consistent parts.
Where to find a reliable aluminum die casting manufacturer
There are several ways to find a reliable aluminum die casting manufacturer:
Online directories: There are several online directories like ThomasNet, and Global Sources, where you can find a list of aluminum die casting manufacturers. These directories provide detailed information about the manufacturer’s background, services, and product offerings, which can be helpful in evaluating their reliability.
Industry associations: Industry associations like NADCA (North American Die Casting Association) can provide a list of reliable aluminum die casting manufacturers that are members of the association. These manufacturers are often certified and follow the industry standards, which can assure the quality of their products and services.
Referrals: Referrals from colleagues, business partners, or other industry contacts can be an excellent source of reliable aluminum die casting manufacturers. You can also ask for referrals from your current suppliers or manufacturers.
Online reviews: Online reviews on sites like Google Reviews, Yelp, or Facebook can provide insight into the experiences of other customers with the manufacturer. Reading reviews can help you gauge the manufacturer’s reliability, quality, and customer service.
Trade shows and exhibitions: Attending trade shows and exhibitions can provide an opportunity to meet several aluminum die casting manufacturers in person and learn about their capabilities and services.
Aluminum CNC machining
Where to buy aluminum die casting components with low price?
The price of aluminum die casting components can vary depending on several factors such as the complexity of the part, the quantity ordered, and the manufacturing process used. However, here are a few ways to buy aluminum die casting components with a low price:
Order in bulk: Aluminum die casting manufacturers often offer discounts for bulk orders. Therefore, if your order quantity is significant, you may be able to negotiate a lower price per unit.
Shop around: Research multiple manufacturers to compare prices and services. Look for manufacturers with competitive pricing, but don’t compromise quality for a lower price.
Use online sourcing platforms: Online sourcing platforms such as google search, GlobalSources allow you to search for aluminum die casting manufacturers who can produce aluminum die casting components at a lower price. These platforms often have a large database of aluminum die casting suppliers, making the process of finding a supplier easier and more efficient, but need to be carefully to make sure you find a reliable aluminum die casting company.
Negotiate prices: Try negotiating the price with the manufacturer for a lower price. In some cases, manufacturers may be willing to offer a lower price to secure your business.
Optimize design: Simplifying the design of your aluminum die casting components, reducing the complexity, and minimizing the number of secondary operations can help reduce the manufacturing cost. Talk to the manufacturer about design optimization to discuss the possibility of getting a lower price.
How to find good quality with low price aluminum die casting company in China?
Finding a good quality and low price aluminum die casting company in China can be challenging, but here are some tips to help you make the process easier:
Research the company’s background: Check the company’s website and online reviews to get an idea of their experience, reputation, and quality of products. Look for companies with ISO, RoHS, or other quality certifications to ensure compliance with international standards.
Ask for samples: Request for product samples of previous work from the company. This will help you assess the quality of their products and confirm if they meet your requirements.
Check the company’s capabilities: Check that the company’s capabilities align with your requirements. Match their technology, machinery, production capacity, and quality standards to your expectations.
Competitive pricing: Compare quotes from different aluminum die casting companies in China. This will give you an idea of the standard pricing in the market and where you stand with regard to the pricing.
Communication: Check that the company is responsive, honest, and transparent in their communication. This can ensure that you have a good working relationship and that they won’t compromise on the quality of your products due to cost-cutting measures.
Engage a sourcing agent: Consider engaging a sourcing agent who can help you source for reputable aluminum die casting companies in China. Sourcing agents can help you navigate the complexities of international trade, language and cultural barriers, and provide an extra layer of assurance for quality control and product inspection.
Die Casting mold
Conclusion
Aluminum die casting is a popular manufacturing technology for producing high-quality industrial parts. The process offers numerous advantages, including lightweight, high strength, dimensional accuracy, and good surface finish. The process has extensive applications in the automotive, aerospace, electronic, and industrial machinery industries.
Aluminum die casting Manufacturers must also address its challenges, including production cost and complexity, environmental concerns, and limited alloy options. Advances in technology and the use of sustainable practices will shape the future development of aluminum die casting.
Looking for China aluminum die casting companies for your die casting project? Contact to contact us
https://www.thediecasting.com/wp-content/uploads/2018/06/Die-casting-003.jpg473860adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2017-03-22 16:07:082023-05-18 00:09:43Aluminum Die Casting
Aluminium die casting is a casting liquid die forging method. Die casting process is a kind of special high pressure die casting machine to accomplish the process. Its basic technological process is: first metal or aluminium alloy liquid in low or high-speed casting filling into the die mold cavity, die with a moveable type cavity surface.
It with the liquid aluminum alloy cooling process pressure forging blank, both the elimination of shrinkage defects, also make the rough internal Aluminum Die Casting organization to forge the broken crystal. Rough comprehensive mechanical properties are improved significantly.
A380 aluminium die casting
Benefits of aluminum die casting Metals and precautions related to aluminium die casting. Different types of aluminium alloys can be used in die Casting and aluminium molds, types of methods are used for aluminum casting molds, zinc die casting, aluminum die casting and many more
Type of Casting process
Casting is the process of making Aluminium suitable for producing different types of products. It is a simple and inexpensive way to provide a wide variety of aluminium products. Some of the examples are Washington Monument, car engines, and power transmissions, etc, which were all produced through aluminum casting alloys process. Aluminium casting can be done in 3 ways:-
Auminum die casting
Mold Casting
Sand Casting
DIE CASTING
Die casting is a manufacturing process for producing metal parts. In die casting, die or mold cavities are created with hardened tool steel that has been previously machined to a particular shape. Here in die casting, Aluminium is melted first and is poured into a steel die under high pressure forcefully. This manufacturing technique is normally used for high volume production, the process we normally called high pressure die casting or pressure die casting process
MOLD CASTING
About mold casting, mold and cores can be of either steel or any other metal. Here also the aluminium is melted first and is poured in the mold provided. Sometimes vacuum is also applied. In some situations, Permanent mold casting is seemed to be stronger than both die casting and sand casting methods. Semi-permanent mold casting techniques are used when permanent cores are impossible to remove from the finished part.
Sand casting is the most versatile method of producing aluminium products. Usually, the molted aluminium is poured into a mold which is virtually pressed into a fine sand mixture. The pattern will be little larger than which needed for the aluminium shrinkage during solidification and cooling. Sand Casting is usually a slow process than both die casting and mold casting. Usually, it is used for small quantity products.
Aluminum Casting Alloys
The most important cast aluminum casting alloys system is Al-Si. Here high levels of Silicon contribute to give good casting characteristics. aluminum casting alloys are widely used in engineering structures and components where lightweight or corrosion-resistant is required.
Methods and benefits of Aluminium die casting
Metals and precautions related with aluminium die casting Different types of aluminium can be used for die Casting, Aluminum casting manufacturer & aluminum casting is used in order to cover different types of metals by using different types of methods.
There are many methods used for aluminum casting and different types of benefits are obtained. With the help of aluminum casting and aluminum die casting it is possible to increase the life of metals and these can be used for a long time period with an amazing look and charm of metal.
Methods
Different types of methods are used for aluminium die casting. The main thing is to melt aluminum. High temperature is needed for melting aluminum. Special structures are used for the melting of aluminum. When aluminum casting is melted then it is poured on the target metals. Then the melted aluminum casting is allowed to get hard and it is ready to be used after some time period.
There are special containers that are made to be used for the melting of aluminum. These structures are available in the market in different shapes and sizes. You are also able to make these structures at home by using the desired ingredients. You have many options in making these structures. If you are going to buy this structure from the market then you have to make a selection of the size and shapes. There are many options in terms of sizes and shapes and different types of prices are charged by makers.
Working of these structures is also different as some use fuels and some use manual efforts for getting heat to make sure that aluminum casting could be heated and melted effectively. High temperatures are obtained in these structures and then aluminum casting is melted and then used on the target metals for the casting process.
There are many types of benefits of aluminum die casting. Mainly this type of casting is done to make sure that the metal can remain safe from corrosion. Atmosphere conditions and moisture is bad for iron and casting can help to protect iron and increase its useful life. aluminium die castingis able to resist moisture and other harmful effects of the environment due to which it can be used on metals through casting.
The protective shield is made on iron to make sure that it can be used for a long time period. aluminium die casting companiescan be cast on iron and make a protective sheet. This protection is in the form of a shining layer which is obtained by using high temperatures. This layer is permanent and good looking along with increasing strength and useful life of metal. Mostly iron is cast with the help of aluminum. This is a cheap process and the user is able to get benefits as the life of iron is increased.
Conclusion
aluminium die casting mold can be used for casting of iron and other metals. There are many methods available for this process. With the help of any reliable method, the user is able to get benefits as the metal is saved from corrosion and other harmful effects of the environment. A protective layer is made as a result of casting and this layer is of aluminum. With the help of this layer, the metal can be used for a long time period.
Type of Aluminum Die Casting
Metals and precautions related to aluminum die casting
Metals and precautions related to aluminum die casting Different types of aluminium can be used for die Casting, Aluminum die casting manufacturer & aluminum casting Different types of metals can be protected with the help of aluminum casting and aluminum die casting. There are different types of care and precautions which are to be used to make sure that the user can get benefits while using the casting process.
The casting of aluminum casting molds is mainly done to make sure that the metals can get a good look and these can remain safe from harmful effects from the environment. Problems like corrosion of iron and other adverse effects of the environment are resisted effectively with the help of aluminum casting and aluminum die casting.
A protective layer of aluminum casting molds is obtained as a result of aluminum casting and aluminium die casting. This layer is made of metals to make sure that these can remain safe from problems. In order to make such a layer, it is important to melt aluminum casting molds. Such metals can be cast with the help of aluminum which has more melting points as compared with aluminum.
This is important as aluminum die casting is to be used in the melted form and if the metals used are having a low melting point then these will be melted and cannot be cast. Those metals which have more melting points as compared with aluminum casting molds can be cast effectively. In this manner, a protective layer of aluminum casting molds is made on metals, which is giving them more life and safety from corrosion and other harmful effects of the environment.
Precautions casting
When you are using a casting process then make sure that you have all the required tools and items. You have to protect your body from extra heat which is generated in the casting process. Melted aluminum must be handled with care as it can fell and lead to hardening and accidents. You must pour the melted aluminum on target metals and give enough time for hardening.
You must have the tools which can be used for handling melted aluminum. The tools to be used must be hard enough that these could bear the high temperatures of melted aluminum. You must have special clothes which will cover your body to remain safe from the heat. With some care, you are able to use the casting process to give your metals a new life. The useful life of different types of metals can be increased with the help of casting of aluminum.
The casting of aluminum casting molds is used on different types of metals for increasing their useful life. Aluminum is able to make a thin sheet which is giving protection to metals. This layer is obtained by melting aluminum casting molds and then pouring the melted aluminum casting molds on the surface of target metals. Different types of metals are cast in a routine with the help of casting of aluminum. You must have the tools and items to be used to complete the casting process.
With some care, you are able to get desired results in the form of casted items and metals which will give you long term benefits. You must understand the casting process and learn it before trying it. When you have the knowledge and items for completion of the casting process then you can try this at home.
Welcome to CNM TECH, we are Die casting China company, offer custom die casting products to the worlds, send me your RFQ now.
https://www.thediecasting.com/wp-content/uploads/2018/04/Aluminum-die-casting.jpg600800adminhttps://www.thediecasting.com/wp-content/uploads/2020/06/cropped-Aluminum-die-casting.jpgadmin2017-03-22 15:59:312023-05-20 23:00:56Aluminium Die Casting
