What is custom aluminum heat sinks

Custom aluminum heat sinks or custom made heat sinks refer to heat sinks made from aluminum that are custom-designed and manufactured to specific size, shape, and thermal performance requirements for a particular application. Custom aluminum heat sinks are used to dissipate heat generated by electronic devices such as CPUs, graphics cards, power supplies, and LED lights, among others, to ensure optimal performance and prevent damage to the devices.

The aluminum material used in heat sinks has high thermal conductivity, which allows it to effectively transfer heat away from the device and into the surrounding environment, where it can be dissipated. The customization of aluminum heat sinks includes various design aspects such as fin structure, surface finish, color, and material choice. Custom aluminum heat sinks are widely used in industrial and commercial applications due to their efficiency, durability, and cost-effectiveness.

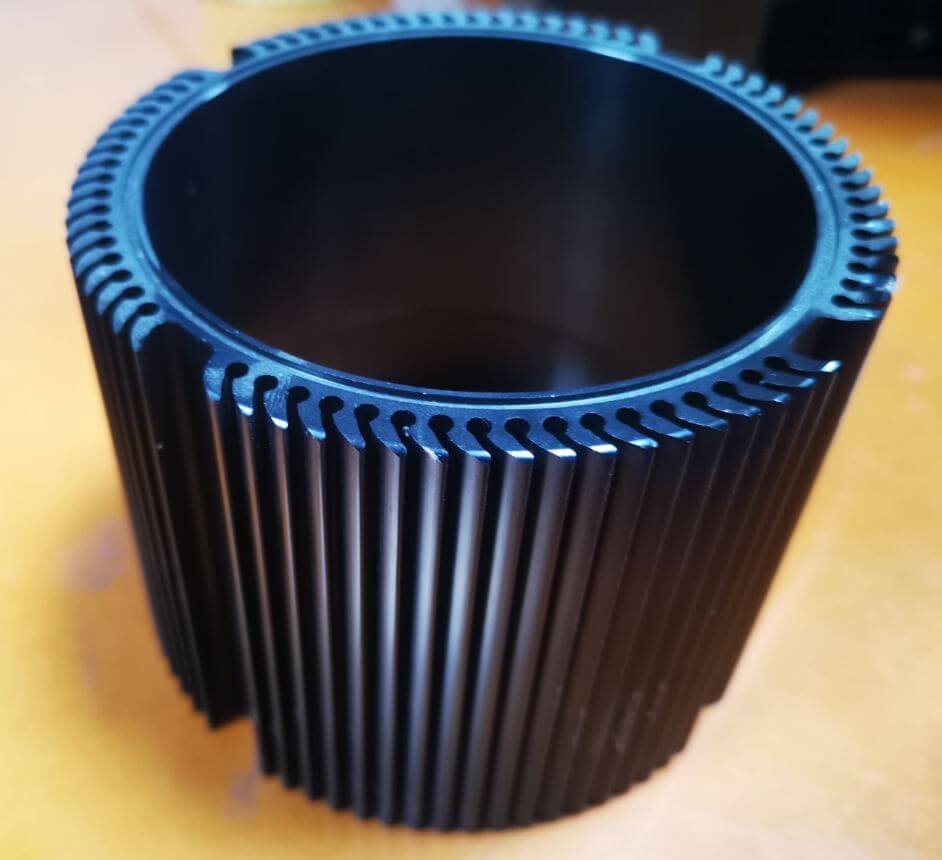

custom aluminum heat sinks

custom aluminum heat sinks

In today’s world, electronic devices are becoming more and more complex. As the amount of power that these devices require increases, the need for efficient heat dissipation becomes even more important. Custom heat sinks play a critical role in dissipating heat in electronic devices, and are a popular choice due to their high thermal conductivity and excellent durability.

In this page, we will explore the benefits of custom extrusion heat sinks, the factors to consider when choosing them, the different types of custom aluminum heat sinks available, and their applications.

Factors to consider when choosing custom aluminum heat sinks

Thermal conductivity – The thermal conductivity of aluminum is very high, which makes it an excellent choice for heat sinks. When selecting a custom aluminum heat sink, it is important to consider the specific thermal conductivity required for your application. Higher thermal conductivity means that heat is transferred more efficiently, but it may also increase the cost of the heat sink.

Durability – Aluminum heat sinks are known for their excellent durability and long lifespan. However, some applications may require additional durability due to harsh environmental conditions or high levels of vibration. In these cases, it may be necessary to choose a specialized type of aluminum alloy or to add a protective coating to the heat sink.

Cost-effectiveness – As with any engineering design decision, cost is always a consideration. Aluminum heat sinks are generally more affordable than heat sinks made from other materials, but the cost can still vary widely depending on the size, shape, and complexity of the heat sink.

Size and shape – Custom aluminum heat sinks can be made in many different shapes and sizes. When choosing a heat sink, it is important to consider the size and shape requirements of your application. A heat sink that is too small may not provide enough cooling, while a heat sink that is too large may be too heavy or take up too much space.

Types of custom aluminum heat sinks

Extruded custom made heat sinks – Extruded heat sinks are a popular choice for many applications due to their cost-effectiveness and ease of customization. These heat sinks are made by pushing heated aluminum through a die, which forms the heat sink into a specific shape. Extruded heat sinks can have fins of varying heights and widths.

Bonded fin custom made heat sinks – Bonded fin heat sinks are created by combining a base plate with specialized fins that are bonded to the plate. This process creates a heat sink with superior thermal performance and excellent structural strength. Bonded fin heat sinks can be customized to have almost any desired fin shape and thickness, which makes them a popular choice for many different applications.

Folded fin custom made heat sinks – Folded fin heat sinks are made by taking a flat sheet of aluminum and folding or bending it into the desired shape. This process creates a very durable and lightweight heat sink, but it is also more expensive and difficult to manufacture than other types of heat sinks.

Skived fin custom made heat sinks – Skived fin heat sinks are manufactured by shaving or cutting fins into a solid block of aluminum. This process creates a very efficient and lightweight heat sink that is ideal for applications with limited space. However, skived fin heat sinks are generally more expensive than other types of heat sinks.

The Custom extruded heat sink processing

Custom extruded heat sink processing involves the creation of a custom heatsink from raw aluminum materials through extrusion. Extrusion is a manufacturing process that involves pushing a heated billet or slug of material through a die to create a desired shape and size.

Here are the steps involved in the Custom extruded heat sink processing:

  1. Design the heatsink: The first step is to design the heatsink according to the specifications and requirements of the intended application. The design should include details such as size, shape, and the number of fins.
  2. Prepare the billet: A billet is a cylindrical block of aluminum that is heated to a temperature required for extrusion. The billet is then loaded into the extrusion press.
  3. Extrusion process: The billet is pushed through the die under high pressure, causing it to take on the shape and size of the die. As the aluminum passes through the die, it is cooled and solidified into the desired shape.
  4. Cutting and finishing: Once the extrusion process is complete, the heatsink is cut to the required length and the edges are finished using a cutting or sawing process.
  5. Sandblasting and anodizing: Sandblasting is used to remove any surface impurities and smooth out any rough edges, and anodizing is used to add a protective layer to the aluminum heatsink extrusion. The anodizing process can also add color to the surface of the heatsink.
  6. Quality Control: The finished heatsink is inspected to ensure it meets the required specifications. Checks are carried out to ensure that the size, shape, and any other features of the heatsink are within the required tolerances.

By following these steps, a custom aluminum heatsink can be produced through extrusion processing.

Challenge of making high quality custom aluminum heatsink

There are several challenges in making high-quality custom made heat sinks:

  1. Design: One of the challenges is designing the heatsink to match the thermal requirements of the application. The design must take into account factors such as the amount of heat generated by the device, the maximum temperature that the device can handle, and the available space for the heatsink.
  2. Manufacturing: The manufacturing of custom aluminum heatsinks can be challenging, primarily due to the precision required in producing the fins and other parts. The tooling and hardware used must be designed and machined with great precision to make sure that the heatsink meets the required specifications.
  3. Material Selection: Material selection is also a critical factor in making high-quality custom aluminum heatsinks. The choice of aluminum alloy, finishing, and thermal conductivity properties are essential to optimize the heatsink’s thermal dissipation performance.
  4. Quality Control: Quality control is crucial in ensuring that each heatsink produced meets the required specifications. The quality control process must be well defined to check the parts’ dimensions, surface finishes, and uniformity of the fins.

In summary, making high-quality custom aluminum heatsinks involves designing, manufacturing, material selection, and quality control. Overcoming these challenges requires skilled labor, precision machining, and continuous improvement processes.

What is min tolerance can meet of CNC machining aluminum heat sink?

The minimum tolerance that can be achieved in CNC machining aluminum heatsink depends on various factors, including the complexity of the part, the size of the features, and the equipment’s capability.

In general, a well-equipped CNC machine shop can achieve tolerances of +/- 0.002 inches (0.0508 mm) for critical dimensions. However, it is possible to achieve tighter tolerances of +/- 0.001 inches (0.0254 mm) or even +/- 0.0005 inches (0.0127 mm) for specific features, such as holes, slots, and other critical surfaces, with the use of advanced CNC programming and calibration.

It is important to note that achieving tight tolerances requires high-precision CNC machines and skilled operators who can closely monitor the machining operations. Additionally, the material properties, surface finishes, and other environmental factors can affect the accuracy of the CNC machining process. As such, it is crucial to work closely with an experienced CNC machine shop to select the appropriate CNC machining technology and achieve the desired tolerance levels for your specific aluminum heatsink application.

How to control the tight tolerance from the CNC machined aluminum heatsink

To control tight tolerance from CNC machined aluminum heatsink, you can consider the following steps:

  1. Design for manufacturability: Design the part with tolerance in mind, taking into consideration the capabilities and limitations of the CNC machining process. This will help to ensure that the parts can be made to the required tolerances.
  2. Select the right machining technology: Choose a CNC machining process that is capable of achieving the required tolerances. High-precision machining methods such as precision milling or turning can help to achieve tight tolerances.
  3. Calibration of the equipment: Calibration of the CNC machine is essential to ensure that it is operating within the desired tolerances. This can be accomplished by performing regular maintenance, monitoring the machine’s performance, and making adjustments as required.
  4. Use high-quality tooling: Use high-quality tools, such as end mills, drills, and inserts, that are designed to maintain tolerances while machining.
  5. Monitor the process: Monitor the CNC machining process closely to ensure that the desired tolerances are being achieved. This can be accomplished using a variety of methods, including in-process inspection, coordinate measuring machines (CMMs), and statistical process control (SPC).

By following these steps, you can achieve tight tolerance from CNC machined aluminum heatsink and ensure that the final product meets the required specifications.

Customization options

Material selection – Aluminum heat sinks can be made from many different types of aluminum, including 6061-T6, 6063-T5, and 1100-H14. These materials have different levels of thermal conductivity and durability, and the specific material chosen will depend on the requirements of the application.

Surface finish – Heat sinks can be finished in many different ways, including anodizing, powder coating, or painting. Anodizing is a popular choice because it creates a hard, durable finish that resists corrosion and wear. Powder coating and painting can be used to create custom colors and finishes, but they are not as durable as anodizing.

Color options – Heat sinks can be customized to be almost any color, which makes them ideal for applications where aesthetics are important. However, it is important to choose a finish that does not interfere with the thermal properties of the heat sink.

Applications of custom aluminum heat sinks

Electronics cooling – Custom aluminum heat sinks are commonly used in electronics cooling applications, including computer CPU cooling, graphics card cooling, and power supply cooling. These heat sinks are also used in other electronics applications, including telecommunication systems, medical devices, and audio amplifiers.

LED lighting – LED lighting is becoming increasingly popular due to its energy efficiency and long lifespan. However, LEDs generate heat that needs to be dissipated to ensure reliable performance. Custom aluminum heat sinks are an excellent choice for LED lighting applications due to their high thermal conductivity and excellent durability.

Power electronics – Power electronics applications, including motor drives, power supplies, and inverters, generate a large amount of heat that needs to be dissipated. Custom aluminum heat sinks are an ideal choice for these applications due to their excellent thermal performance and durability.

How to find a reliable China custom aluminum heat sink manufacturer

Finding a reliable China custom aluminum heat sink manufacturer requires a bit of research and due diligence. Here are some steps to follow:

  1. Look for a manufacturer with experience: Choose a China custom aluminum heat sink manufacturer that has been in the industry for several years. A company with experience is likely to have more knowledge and expertise in custom aluminum heat sink manufacturing.
  2. Look for certifications: A reliable China custom aluminum heat sink manufacturer should have relevant certifications and standards, such as ISO 9001, RoHS, and CE marking.
  3. Check their reputation: Do your due diligence by checking the manufacturer’s reputation through online reviews, customer testimonials, or by contacting their previous customers. This can give you an insight into their quality of work, reliability, and service.
  4. Quality of customer service: Observe how the manufacturer’s customer service team responds to your inquiries. A reliable custom aluminum heat sink manufacturer should have a responsive and helpful customer service team.
  5. Manufacturing capacity: You’ll want to verify that the manufacturer has the capacity to fulfill your order on time. Ask about their production capabilities, lead time, and the minimum order quantity to make sure that they meet your requirements.
  6. Visit their factory: If possible, visit the China custom aluminum heat sink manufacturer’s facilities and check their manufacturing processes, quality control measures, and equipment. This can give you a better understanding of their capabilities and quality of work.

By following these steps, you can find a reliable custom aluminum heat sink manufacturer in China to fulfill

Conclusion

Custom aluminum heat sinks play a critical role in dissipating heat in electronic devices and are a popular choice due to their high thermal conductivity and excellent durability. When choosing a Custom extruded heat sink, it is important to consider factors such as thermal conductivity, durability, cost-effectiveness, size, and shape.

CNM TECH offers high quality of custom aluminum heat sinks, if yo are looking for custom heat sink service from China manufacturer, welcome to contact us.
