What is Customized Zinc Die Casting Mould: Benefits, Designing, and Choosing the Right Manufacturer

Customized zinc die casting mould refers to the creation of specialized molds tailored to specific manufacturing needs for zinc die cast parts. These molds are designed to provide enhanced mold performance and product quality while reducing lead times and cost-effectiveness. This article delves into the benefits of customized zinc die casting mould, factors to consider when designing one, and how to choose the right manufacturer.

Benefits of Customized Zinc Die Casting Mould

Enhanced Mold Performance

Customized zinc die casting moulds offer improved mold performance capabilities, enabling manufacturers to achieve greater outputs and better product quality. By tailoring the mold to specific manufacturing requirements, businesses can enhance the durability of the molds, reduce scrap, and significantly increase the life of the molds. Additionally, customized molds also ensure that parts are cast more accurately and minimize the chances of defects, which can affect the final output quality.

Increased Product Quality and Consistency

Zinc die casting demands a high degree of accuracy since even small errors in the cast parts can lead to defects or malfunctioning products. Customized zinc die casting molds offer greater consistency and accuracy of the final part produced. By using advanced designing technologies, manufacturers can reduce the possibility of errors in their design, which translates to better product quality, higher yield rates, and reduced waste.

Shortened Lead Times

Customized zinc die casting molds reduce production time significantly since they are tailor-fit to suit specific manufacturing requirements. The reduced production time enables manufacturers to reduce their production costs and satisfy their customer demands more efficiently by delivering high-quality products within shorter turnaround times.

Improved Cost-Effectiveness

Customized zinc die casting molds offer businesses significant cost savings in material usage, production, and maintenance costs. Traditional molds tend to cause multiple failures, leading to frequent replacement, while customized molds have fewer failures and require less replacement. Additionally, these molds significantly reduce scrap rates, which reduces the overall material handling costs over time.

Factors to Consider in Customized Zinc Die Casting Mould

Material Selection

Zinc die casting mold design is affected by the type of material desired for castings. The material type and grade determine the mould’s overall structure and any specific design requirements that can provide more uniform and denser castings. Manufacturers should consider the material consistency, thermal conductivity, and mold’s design when selecting the right material for their customized zinc die casting mould.

Surface Finish Requirements

Part design requirements dictate the mold design for appropriate surface finishes. Moulds should provide for easy ejection of the casted parts without causing any distortion or damage. As a result, customized zinc die casting mould designs should incorporate specific surface finishes, such as polishing or texturing.

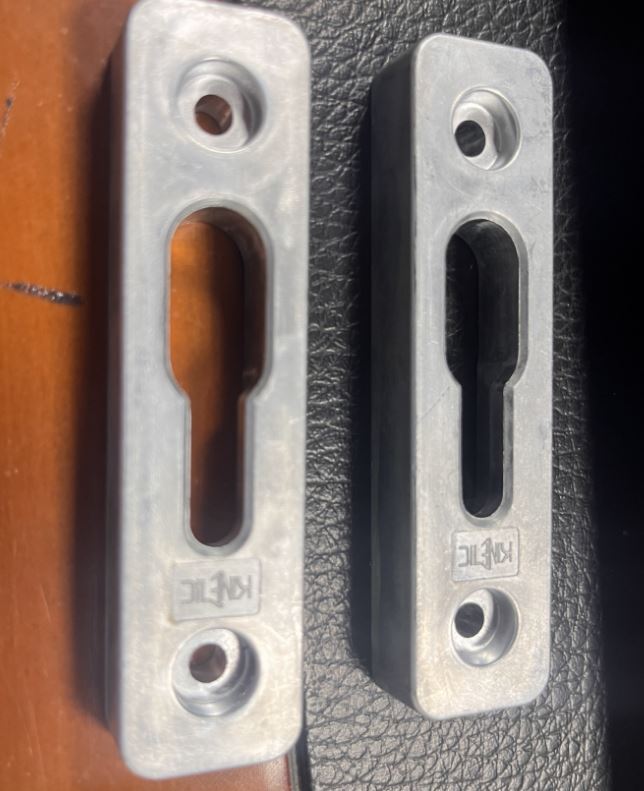

customized zinc die casting mould

customized zinc die casting mould

Dimensional Tolerance

The degree of variability in dimensional tolerance results from the adaptability of the mold used. Manufacturers should understand the nature of the parts to be produced and consider tolerances for maximum and minimum dimensions, as tighter tolerances can impact production costs.

Part Complexity

Part designs have varying complexities, with some parts requiring intricate attention to detail. Complex designs increase the mold’s complexity and cost. It is therefore essential for manufacturers to evaluate the components and decide on the most viable designs that meet their overall production goals.

Designing Customized Zinc Die Casting Moulds

Understanding the Requirements and Specifications

The first step in designing customized zinc die casting moulds is having a comprehensive understanding of the requirements and specifications. Manufacturers should involve qualifications engineers and skilled modeling designers when preparing specifications, as these professionals will provide insights and guidance toward designing the best casting molds.

Developing a Design Plan

Manufacturers should develop a sound design plan that considers all the specifications. The design plan should incorporate general design requirements, technical aspects, preferred materials, molds’ dimensions and properties, and manufacturing techniques.

Using Simulation Software for Testing

Designing a mold requires numerous iterations to come up with the perfect design. Simulation software can identify potential casting issues, allowing modifications before the actual casting process. Software simulation output can also identify potential mold damage risks and provide the necessary data to determine the viability of using that mold.

Choosing the Right Manufacturer for Customized Zinc Die Casting Mould

Reputation and Experience

The reputation and experience of a casting manufacturer are vital when selecting the right provider. Manufacturers should research potential vendors’ performance histories and speak directly with references.

Technical Capabilities

It is essential for the manufacturer to have the technical capabilities and technology for producing customized zinc die casting moulds. The supplier should have access to the latest industry technology and, most importantly, understand the design requirements that come with using advanced technology.

Communication and Collaboration

Manufacturers should choose a supplier who has excellent communication and collaboration skills. Mould design can be a complicated process that requires continuous communication between the manufacturer and the vendor. The chosen supplier should facilitate communication throughout the process to ensure that the design goals are met.


Customized zinc die casting molds provide enhanced mold performance, improved product quality and consistency, shortened lead times, and improved cost-effectiveness. Designing these molds requires an understanding of the requirements and specifications, developing a design plan, and using simulation software for testing. Choosing the right manufacturer is crucial, with the most critical considerations being reputation and experience, technical capabilities, and communication and collaboration.

Thus, manufacturers who want to gain a competitive edge in the industry should explore the benefits of customized zinc die casting moulds and consider the fundamental factors discussed in this article to achieve their unique production needs.

Customized zinc die casting molds are specialized tools that are specifically designed and manufactured for a particular zinc die casting project. These molds are created using computer-aided design (CAD) software and are typically made from high-quality steel to withstand the high pressures and temperatures of the casting process.

Customized zinc die casting molds allow China die casting manufacturers to produce parts with precise dimensions and intricate details that may not be possible with standard molds. The process of creating a customized mold typically involves several steps, including design, prototyping, and tooling.

The design stage involves creating a detailed design of the part using CAD software and working with the customer to ensure that the design meets their specific requirements. The prototyping stage involves creating a physical prototype of the part using 3D printing or other rapid prototyping methods to ensure that the design is feasible and meets the customer’s expectations.

The tooling stage involves creating the actual mold using CNC machining or other manufacturing equipment. The mold is created based on the approved design and is then used to produce the final parts through the zinc die casting process.

Customized zinc die casting molds offer several benefits, including the ability to produce parts with precise dimensions and intricate details, the ability to produce parts with a specific finish or texture, and the ability to produce parts in large quantities efficiently. However, the process of creating a customized mold can be time-consuming and may require a larger upfront investment compared to using standard molds.
