Investment casting is a highly precise production method used to make complex metal parts with high dimensional accuracy and surface finish. The process entails carving a wax figure of the required component, applying a ceramic shell to the figure, then using epoxy on the wax, and finally pouring heated metal into the figure, which has been left hollow. The technique is also commonly referred to as lost-wax casting because the wax pattern is melted away during the process.
The technique is appreciated in various industries, where it can produce complex shapes, thin-walled, and detailed geometries that cannot be easily produced by most other casting methods. The resulting parts are usually near-net shape, meaning they require little machine work or additional after-cast processing. This allows manufacturers to save on material waste and production time while maintaining high precision.
The history of investment casting dates back thousands of years. The process was used to produce jewelry, ornaments, and sculptures by ancient civilizations. Gradually, the method evolved into an indispensable part of industrial production. Industries, including aerospace, automotive, medical devices, industrial machinery, and energy systems, now use investment casting.
Investment Casting Overview
Investment casting is an investment process that involves creating and executing an investment plan created by a company’s owners or managers.
Investment casting, in simple terms, is the process of enclosing a wax pattern in a ceramic mold. As soon as the ceramic shell has hardened, the wax is melted out, leaving an opening that perfectly reproduces the original pattern. This cavity is then filled with molten metal, which hardens, and the ceramic shell is chipped off to expose the final piece of metal.
The process can manufacture parts with:
- Complicated in-house and external geometries.
- Stringent dimensional requirements.
- Smooth surface finishes
- Delicate features and thin walls.
- Due to these properties, investment casting is frequently used when high precision and design flexibility are needed.
The history of Investment Casting
Investment casting is more than 5000 years old. Archaeological records indicate that ancient cultures had the process of producing jewelry, tools, and decorative objects. Early versions of the lost-wax casting technique were used in civilizations such as the Egyptian, Chinese, and Mesopotamian, as well as the Indus Valley societies.
In ancient Egypt, the process was used to make detailed pieces of gold jewelry and ceremonial artifacts. On the same note, Chinese artisans employed it in the production of bronze sculptures and ritual vessels. The fundamental principles of the process have not been changed significantly over the centuries.
With the Industrial Revolution and the rise of modern manufacturing, investment casting became a highly advanced and highly restrictive process. The technique has been made more precise, efficient, and scalable through developments in materials science, engineering, and computer-aided design (CAD). Modern investment casting combines traditional concepts with modern technologies, including 3D printing, automation, and computer simulation.
Investment Casting Principle of Work
Investment casting works on the principle of making a sacrificial pattern, which is an embodiment of the final product. This pattern is coated with a refractory material to create a mold that withstands high temperatures. The final part is made by pouring molten metal into the cavity after the wax pattern has been removed.
All the details of the wax pattern are captured by the ceramic mold, making it very accurate at reproducing even complex shapes. The process can produce elaborate internal cavities and thin walls, as the wax is removed before the addition of metal, unlike other casting methods, which are constrained by these limitations.
Another important aspect of investment casting is that the mold is destroyed during the process. The ceramic shell mold is not reused, as is the case with reusable molds used in ダイカスト, but is broken away after the metal solidifies. This gives the freedom to design more and the possibility to manufacture parts with complex geometries.
Investment Casting Process in Steps
The process can vary slightly by manufacturer and material, but, in general, the investment casting process has several major steps.
Pattern Creation
The first step is to create a pattern that mimics the end product. This trend is usually created in wax, but plastic or other substances are sometimes used. The wax pattern is typically made by pouring the melted wax into a part-specific metal mold.
Trends can also be created through 3D printing technologies in contemporary manufacturing, enabling quick prototyping and design alterations.
Assembly of Wax Patterns

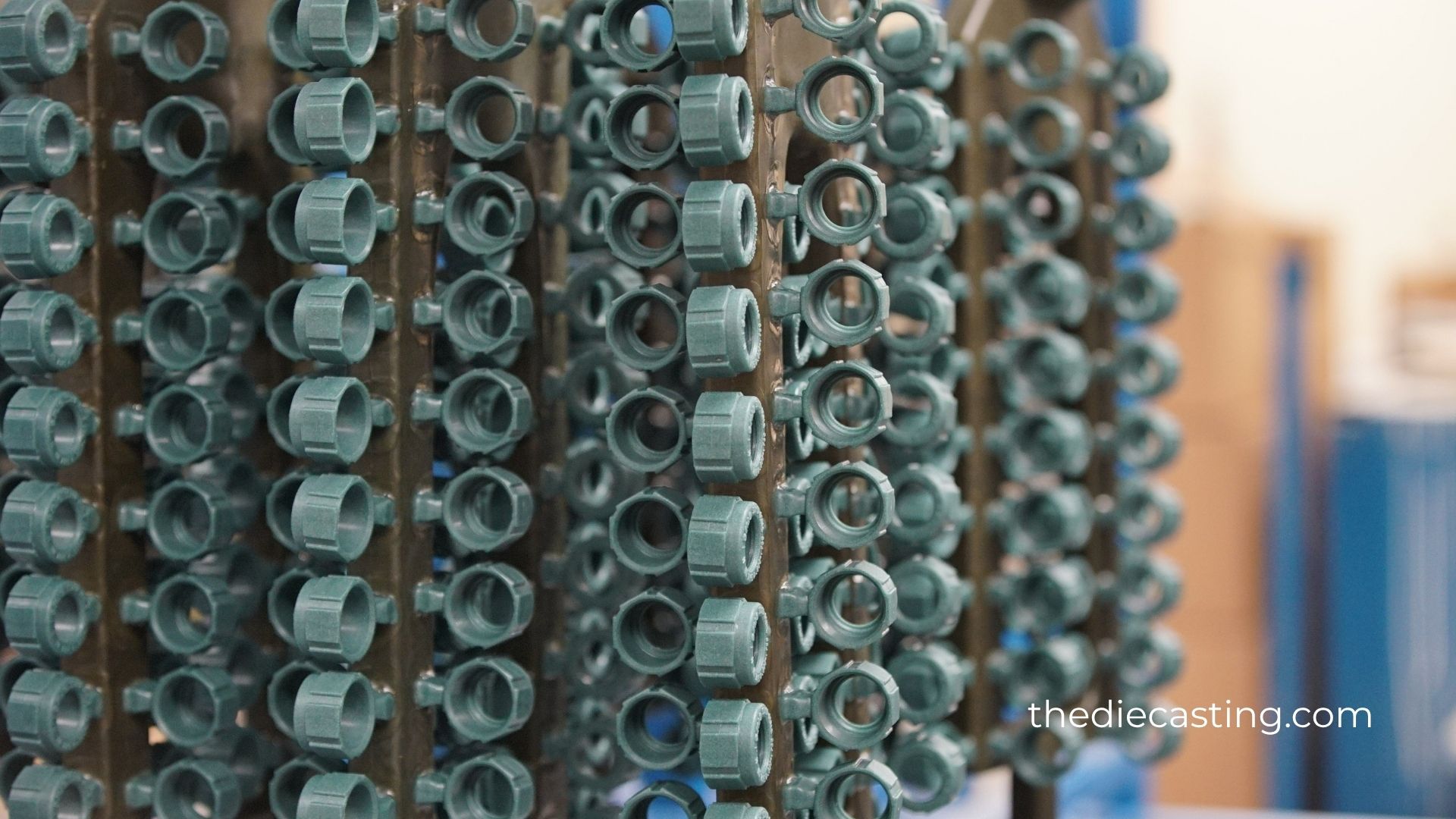

Multiple patterns on wax are often placed on a central sprue to create a wax tree or cluster. This design allows casting many parts in a single mold, enhancing production efficiency.
Sprue systems are also used to convey molten metal during the casting process.
Ceramic Shell Formation

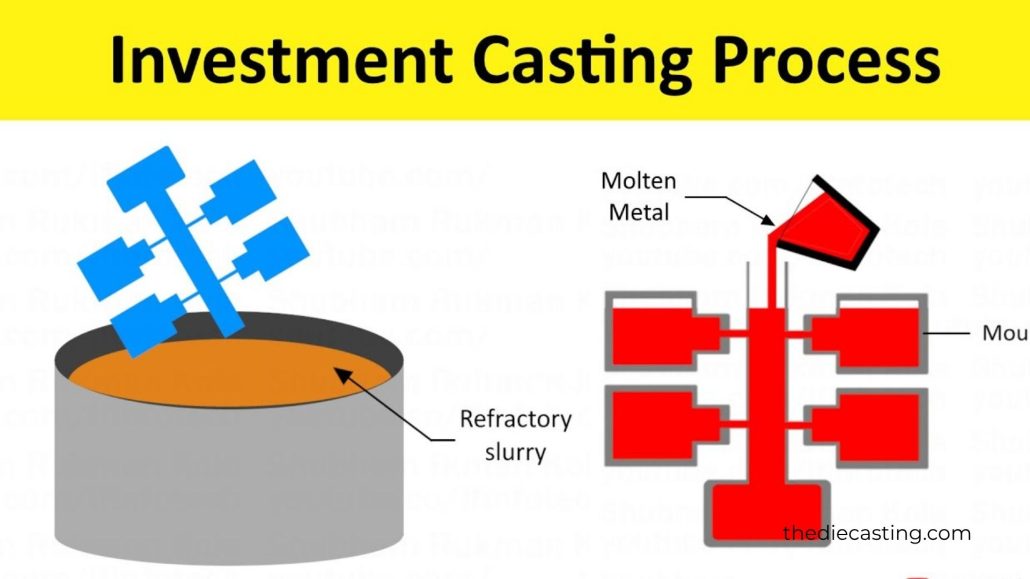

One dips the wax assembly in a slurry of ceramic and covers it with fine sand or refractory particles. The procedure is repeated several times to form a stiff ceramic shell around the wax mold.
One layer has to dry, and then the other is laid. The shell becomes thick and hard enough to withstand the high temperatures and pressure of molten metal after several coatings.
Dewaxing
After the ceramic shell fully hardens, the wax is removed by heating the mold. This is usually done in an autoclave or by fire. Heat melts and drains the wax from the shell, forming a hollow cavity that accurately fits the shape of the pattern.
Since this step involves removing the wax, the procedure is known as lost-wax casting.
Preheating the Mold
The ceramic shell is heated in a furnace before the metal is poured into the mold, removing moisture and strengthening the shell. Preheating is also used to ensure that the molten metal flows freely in the cavity without freezing.
Pouring the Molten Metal

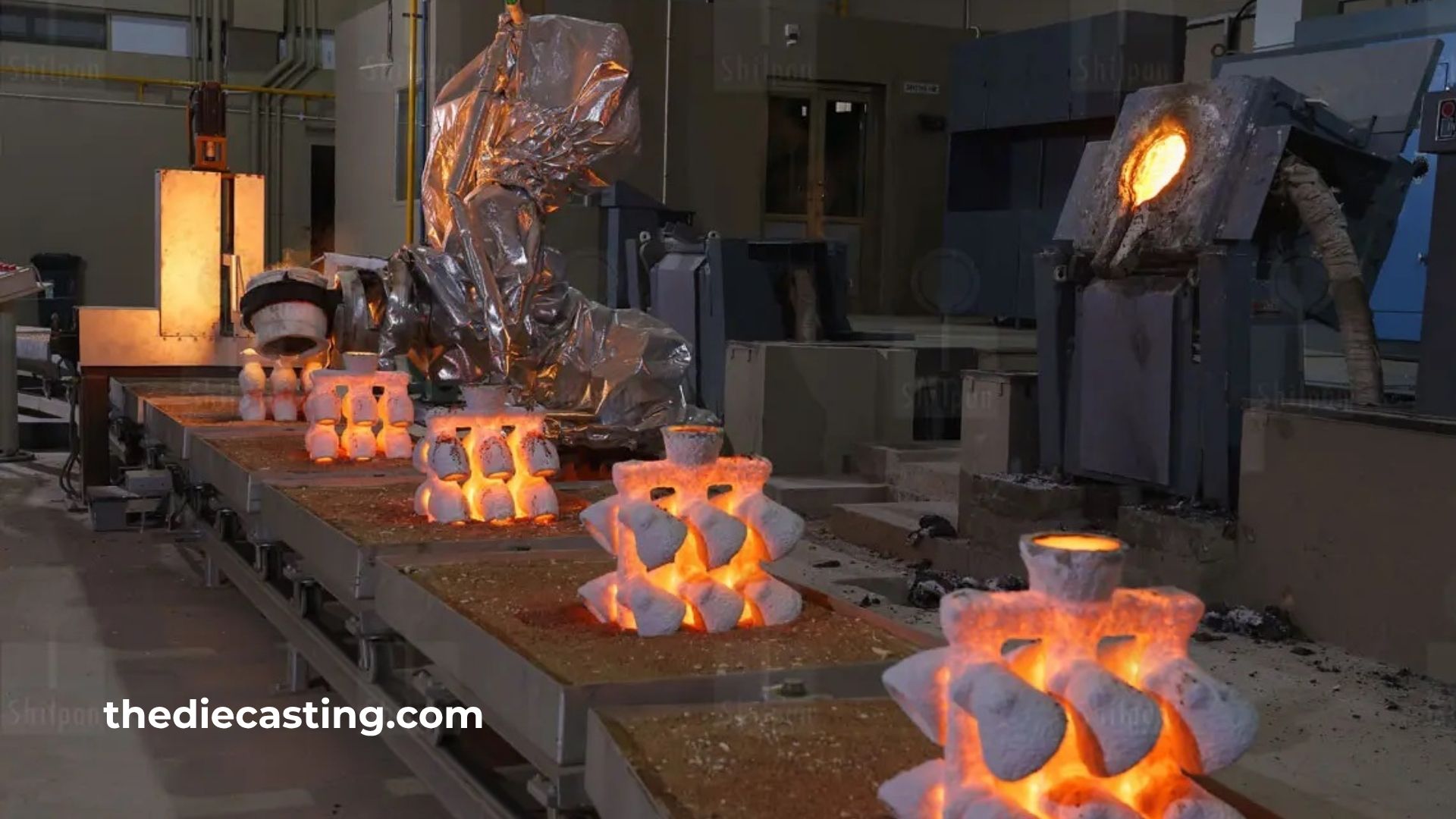

The sprue system is used to pour molten metal into the preheated mold. The cavity is filled with metal, which takes on the exact shape of the wax pattern.
Depending on the application and the required material properties, different metals and alloys may be used.
冷却と凝固
Once this is poured, the metal is left to cool and harden in the ceramic mold. Some factors that determine the cooling time include the metal used, the part size, and the mold temperature.
Shell Removal and Finishing
After the metal has hardened, the ceramic shell is fractured to give the cast part. The constituents are then detached from the sprue system, and finishing processes, including grinding, polishing, heat treatment, or machining, are performed as required.
Metals in Investment Casting
The ability to work with a great variety of materials is one of the key benefits of investment casting. Depending on use, manufacturers can produce components from various metals and alloys.
| 素材 | 主要物件 | 代表的なアプリケーション |
| Carbon Steel | High strength and durability | Automotive parts, structural components |
| ステンレス鋼 | Corrosion resistance, high strength | Medical tools, pump components |
| アルミニウム Alloys | Lightweight and corrosion-resistant | Aerospace components, electronics |
| ブロンズ | Wear resistance and durability | Bearings, gears, marine components |
| 真鍮 | Good machinability and appearance | Decorative hardware, plumbing components |
| Nickel-based Alloys | High temperature resistance | Turbine blades, aerospace parts |
| 銅合金 | Excellent electrical conductivity | Electrical equipment and connectors |
Benefits of Investment Casting
Investment casting has a lot of benefits that make it a choice among manufacturing processes in many applications.
High Precision and Accuracy
Among the greatest benefits of investment casting is its ability to produce parts with very tight tolerances and very high dimensional accuracy. The ceramic mold reproduces finer wax pattern details, which produce very accurate components.
Superior Surface Finish
The cast parts manufactured by investment casting would have a smoother surface than those manufactured by sand casting. This minimizes the finishing processes.
デザインの柔軟性
The process enables the production of complex shapes, slim walls, and complex internal features that might not be possible with other casting methods.
Reduced Material Waste
Since components are made in near-final form, less machining is required. This minimizes material waste and increases manufacturing efficiency.
Wide Range of Materials
Investment casting can handle a wide variety of metals and alloys, allowing manufacturers to select the materials that best fit the purpose.
Minimized Assembly Requirements
In other instances, several parts may be cast together, with no welding or assembly required.
Weaknesses of Investment Casting
Investment casting has its limitations that should be taken into consideration, despite its benefits.
Higher Production Costs
It consists of several steps and tools that may be more expensive than those for less complex casting techniques, such as sand casting.
Longer Production Time
The ceramic shell has to be constructed in layers and dried between layers, which can take days or weeks.
Size Limitations
Investment casting can typically be applied to smaller to medium-sized components. Extremely large sections can be less costly to produce using alternative casting methods.
Complex Process Control
Close attention must be paid to temperature, materials, and timing to ensure high-quality results. Any deviation will result in flaws in the final chastisement.
アプリケーション
Investment Casting has many applications. Investment casting is used in numerous industries where precision and complex shapes are required.
航空宇宙産業
Investment casting is applicable in the aerospace industry to produce turbine blades, engine components, and structural parts. These materials have to withstand the highest temperatures and stresses.
自動車産業
In the automotive industry, engine, turbocharger, and transmission components are cast using the investment casting process.
医療業界
Investment casting is used in the medical industry to make surgical devices, orthopedic implants, and other medical device parts that are highly precise and biocompatible.
産業機械
Many industrial machines depend on precision metal parts manufactured by investment casting. These consist of pumps, valves, and hydraulic equipment.
Jewelry Manufacturing
Lost wax casting is widely used in the jewelry industry to create detailed designs and ornaments in gold, silver, and other precious metals.
Comparison to Other Casting Methods
Investment casting is unique among casting methods in its precision, cost, and design flexibility. For example, sand casting is cheaper and easier, but it produces less-smooth surfaces and less-accurate parts. ダイカスト, however, is costly due to expensive molds but offers a high production rate and is mostly restricted to some metals with low melting points.
Investment casting offers a compromise between accuracy and design freedom, with relatively moderate tooling costs.
Performance and Roominess of Investment Cast Parts
The lifespan of components manufactured by investment casting depends primarily on the material used and the component’s configuration. Investment-cast parts can be used in harsh conditions, such as high temperatures, high pressure, and mechanical pressure, when high-strength alloys are employed.
To use stainless steel investment-cast products as an example, they can be used in corrosive conditions, whereas nickel-based alloys can withstand temperatures far too high in turbine engines.
Since the process produces high-quality, thick metal components, the parts produced have good mechanical properties and are therefore likely to have a long service life.
Contemporary Investment Casting: Modern Developments
Recent technological developments have enabled casting to be highly efficient and of high quality.
Integration with 3D Printing
Additive manufacturing technologies enable manufacturers to produce complex wax patterns quickly and precisely. This saves money in tooling and accelerates the development.
Computer-Assisted Design and Simulation
Investment casting facilities in the modern world use CAD software and simulation to achieve optimal mold design and metal flow. The technologies will help prevent defects and enhance the overall quality of the product.
Process Monitoring and Automation
The automation system and real-time monitoring technology enable the manufacturer to regulate important parameters, such as temperature and pouring conditions, leading to more homogeneous casting quality.
結論
Investment casting is a highly versatile and accurate manufacturing process used to produce complex metal parts with high dimensional accuracy and surface quality. The process can be done in a ceramic mold by using a sacrificial wax pattern, which allows the producer to make complex shapes and features that are hard to produce with other casting processes.
High precision, flexible design, and the versatility of materials are the benefits of investment casting that make it a vital process in contemporary manufacturing. However, it consumes more production time due to the multiple steps involved. In aerospace turbine blades, automotive parts, and now medical devices and jewelry, investment casting plays a very important role in the manufacturing of high-performance metal parts across many industries.
With the continuous development of new technologies, including additive manufacturing, digital simulation, and related technologies, investment casting will become even more productive and flexible. Such innovations will also improve the process’s capacity to manufacture high-quality parts for use in more complex industrial processes.
