Die casting has also been a viable and versatile process in the manufacturing sector for producing high-precision metal products. Aluminum and zinc are among the most common die-casting alloys. Supposing that you are engaged in the production of a product, engineering, or locating the ingredients, you have to realize the difference between zinc die casting and aluminum die casting.
The guide will help manufacturers to choose the most appropriate alloy for their project, whether it’s automotive parts, electronics, or consumer goods. Die casting is a process of pouring hot molten metal into a mold under high pressure to produce intricate shapes with a high level of surface finishes. Both Zinc and 알루미늄 다이캐스팅 have their own merits and demerits.
We will also provide in-depth comparisons, a tabular, fast-tracked view, and professional commentary to help you make an informed decision. At the end, you will clearly understand the difference between 아연 다이캐스팅 그리고 알루미늄 다이캐스팅, and when to use either of them. Let’s explore the key factors.

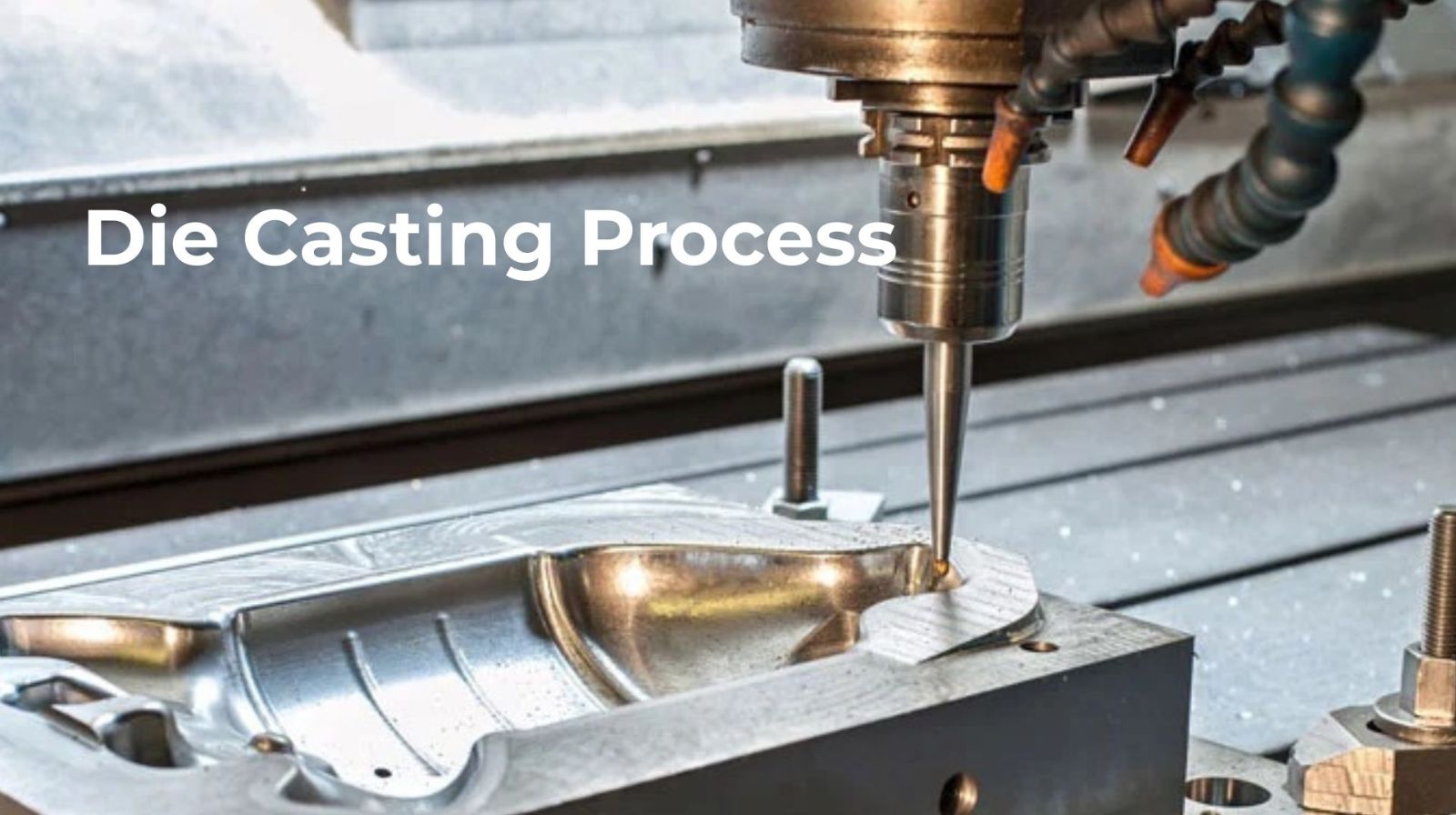

What is Die Casting? A Quick Overview
It is vital to understand the die casting process before comparing zinc die casting and aluminum die casting. Die casting is a process of forcing molten metal into a mold cavity under high pressure (1,000 to 20,000 psi). The hardened steel mold or die can typically produce thousands of similar parts with tight tolerances.
Die Casting Types
핫 챔버 다이 캐스팅
It is applied in low-melting-point metals such as zinc. The injection system is dipped in molten metal.
콜드 챔버 다이 캐스팅
It is best when the metal has a higher melting temperature, such as aluminum. Lading of molten metal into the chamber is done to prevent damage to the machine.
It is preferred for its speed, accuracy, and ability to create complex designs without extensive post-processing. At this point, we will compare the two star alloys: zinc and aluminum.
Primary Properties of Zinc and Aluminum Die Casting
The decision between zinc and aluminum die casting is often reduced to material characteristics. Zinc (and is commonly alloyed as Zamak) and aluminum (such as ADC12 or A380) do not share the same strengths, weight, corrosion resistance, etc.
강도 및 내구성
Zinc alloys are reported to possess great impact strength and ductility. They can withstand significant stress without breaking, making them suitable for components that should be bent or shaped after casting. 알루미늄 합금, on the other hand, are superior in tensile strength and hardness, particularly in structures.
Weight and Density
Compared to zinc, which has a density of 6.6 g/cm 3, aluminum is lighter (d = 2.7 g/cm 3). This contributes to the use of aluminum in industries that require low weight, such as the aerospace industry.
Melting Point and Castability
Zinc melts at approximately 380-390 °C, allowing hot-chamber machines to run faster. Aluminum-only melts at 660 °C, which means cold-chamber processes that may slow production but enable thinner walls to.
내식성
Both have good resistance; however, aluminium performs better under harsh conditions because it naturally forms a protective oxide coating. Outdoor use of zinc demands coating.
| 특징 | 아연 다이캐스팅 | 알루미늄 다이캐스팅 |
| Melting point | 380-390 degrees | 660 degrees |
| Tensile strength | 280-400 | 200-300 |
| 밀도 | 6.6 | 2.7 |
| Thermal conductivity | 109 | 100-140 |
| Electrical conductivity | 높음 | 매우 높음 |
| Impact strength | Ductile | Brittle |
| 내식성 | Good | Best |
아연 다이캐스팅의 장점
The versatility of zinc die casting has made it a reliable option for more than a hundred years. That is why manufacturers are fond of it:
Outstanding Dimensional Accuracy
Zinc remains intact to 0.05mm or less, eliminating the need for secondary machining. The manufacturer can achieve extreme dimensional accuracy with zinc die casting moulds.
High Finish
The raw material itself has a high-quality finish. Parts emerge clean and frequently do not require additional polishing before being plated or painted.
Prolonged Tool Life
Zinc melts easily, so the dies wear out less, resulting in lower long-term tooling costs. The products are corrosion- and wear-resistant, resulting in a longer lifespan.
Fast Speed of Production
The molten material solidifies within 15-30 seconds. It makes zinc die casting suitable for high-volume production. Large-scale industry uses it to improve and increase production.
Affordable for Small Components
Zinc is ideal for complex, small parts such as locks, gears, and hardware. But weight-sensitive applications may make zinc less desirable due to its greater density. Examples of standard alloys include Zamak 3 (general-purpose) and Zamak 5 (higher strength).
애플리케이션
In other industries, such as the automotive sector, zinc is utilized in door handles and brackets. In the case of electronics, it is preferred in connection because it can shield against EMI.
Benefits of Aluminum Die Casting
In larger and structural components, aluminum die casting is leading. Its benefits include:
Lightweight and Strong
Aluminum components can reduce the product’s total weight by 50 percent compared to steel or zinc. Aluminum is light but strong. That makes aluminum die casting ideal for producing products suited to high-strength applications.
Excellent Corrosion Resistance
It does not need further coating in most instances, which is time- and money-saving. The products made from aluminum die casting have a longer lifespan and remain intact.
Good Thermal and Electrical Conductivity
Aluminum’s ability to conduct electricity and heat makes it ideal for a wide range of applications. It is perfect for use in heat sinks, engine blocks, and electrical housings.
재활용 가능성
The aluminum die-casting process is best because of its high recyclability—100 percent aluminum recycling, in line with sustainable manufacturing trends.
Thin-Wall Capability
Aluminum die casting can produce walls as thin as 0.5mm, enabling complex designs.
Drawbacks
- Aluminum is less cost-effective and more challenging to machine.
- Castability and strength balance are key for alloys such as A380.
- Aluminum is applied in frames and fittings in the aerospace industry.
- It is used for lightweight durability in the laptop casing in consumer electronics.
Contradictions and Disadvantages
Not any material is perfect. In the case of zinc die casting as compared to aluminum die casting, these are the cons:
Zinc Die Casting Limitations
- Zinc is heavier and has a lower melting point.
- So it cannot be used at high temperatures.
- It will creep or deform under continuous loads.
Aluminum Die Casting Restrictions
- Porosity is dangerous; it is brittle and more complex to melt.
- Therefore, more energy is required to produce it, which makes it more expensive.
- Environmental factors influence them.
- Zinc mining may be intensive, and aluminum production emits more CO2, but recycling eliminates this.
Comparison of Costs: Zinc Die Casting vs Aluminum Die Casting
A significant factor in the zinc die versus 알루미늄 다이캐스팅 is cost. Raw materials are usually cheaper, getting Zinc (2-3/kg) as compared to aluminum (2-4/kg), yet tooling and manufacturing are different.
Tooling Costs
Zinc dies are longer lasting (up to 1 million shots), and they cost $5,000-50,000. Similar, but wearing more rapidly, are aluminum dies (100,000-500,000 shots).
Cost of Production
Zinc has shorter cycles and minimizes per-part costs at high volumes. The price of aluminum may increase by 20-30 percent due to higher energy costs.
Total Savings
Zinc prevails with small batches (Less than 10,000 parts). The durability of aluminum is evident in large, lightweight parts.
| Costs factors | Almunium die casting | 아연 다이캐스팅 |
| Raw materials | 2-4$ | 2-3$ |
| 툴링 수명 | 100,000-500,000 shots | 500,000-1,000,000 shots |
| Cycle time | 30-60 | 15-30 |
| Secondary processing | 보통 | 낮음 |
| Per part cost | $0.75-3.00 | $0.50-2.00 |
Applications: Where Each Shines
The choice between zinc die casting and aluminum die casting depends on the end use.
Applications of Die Casting Zinc
The use of 아연 다이캐스팅 in different industries is as follows:
- In the automobile industry, zinc die casting is used to manufacture carburetor bodies and fuel pumps.
- In the electrical industry, zinc die casting is used for mounting and switching applications.
- Hardware manufacturers use it to make locks and hinges.
- The surface finish of the zinc die-cast product enhances its aesthetic appeal. These products could be used in decorative products.
알루미늄 다이캐스팅의 응용 분야
Different industries use 알루미늄 다이캐스팅 as a primary manufacturing process to produce products.
- Aluminum die casting is ideal for manufacturing transmission cases and engine blocks in the automotive industry.
- Different components in the aerospace industry are made from aluminum die casting.
- LED housings and computer components in electronics are made by aluminum die casting.
- This process makes pumps and valves.
- The strength of aluminum is appropriate for load bearing.
- Battery housings in electric vehicles are made of aluminum to save on weight, and more miniature connectors are made of zinc.
Differences in Manufacturing Process
Zinc die casting vs aluminum die casting manufacturing processes are slightly different:
- Preparation: They both begin with an alloy melting.
- Injection: Hot chamber used in zinc, cold chamber used in aluminum.
- Cooling and Ejection: Zinc cools at a greater rate.
- Finishing both, however, can be machined, with zinc being easier.
Control of quality includes examination of porosity (gas entrapment) and contraction. Complex processes such as vacuum die casting minimize flaws in aluminum.
Post-Processing and Finishing on Surfaces
Functionality and style are improved through post-processing.
- In zinc die casting finishing, an excellent finish on a mirror (chrome, nickel) is achieved by electroplating. Powder coating is standard.
- While in 알루미늄 다이캐스팅, color and protection are achieved through anodizing, aesthetics through painting.
| 특징 | 아연 다이캐스팅 | 알루미늄 다이캐스팅 | Cost impact |
| 페인팅 | Good | 우수 | Medium |
| 연마 | High shine | 보통 | Low impact |
| Powder coating | Good | 공정 | 낮음 |
| 아노다이징 | Poor | 우수 | 낮음 |
| 전기 도금 | 우수 | Good | Medium |
Sustainability and Environmental Management
In the present manufacturing, sustainability plays a significant role. The environmental effects of zinc die casting and aluminum die casting differ.
- Zinc die casting: This is not only recyclable in full, but it is also extracted using heavy metals. Energy for melting is lower.
- Aluminum die casting: A lot of energy is consumed at the beginning; however, recycling consumes 95 percent of the energy. It’s infinitely recyclable.
- The two are in line with RoHS standards. Use suppliers certified to ISO 14001 for environmentally friendly practices.
Which is better: Zinc or Aluminum? A Decision Framework
To make a decision on zinc die casting or aluminum die casting, ask:
- Is weight a priority? The manufacturer must go for aluminum.
- High strength in small parts required? Zinc die casting is the best solution.
- Budget constraints? The manufacturer can use Zinc die casting for lower upfront costs.
- When high temperature tolerances are needed, Aluminum die-cast products are ideal.
그리고 다이캐스팅 제조업체 must:
- Specify part needs (size and strength)
- Evaluate production volumes
- Take into account the environmental factors
- Obtain samples from manufacturers
- Compare quotes
After assessing all these factors, the buyer can make an informed decision. Using zinc die casting or aluminum die casting is a totally application-specific decision. The use of the product depends on the selection of both materials.
Best Zinc and Aluminium Die-Casting Manufacturers
China leads in die casting. Top companies include:
- GC Precision Mold Co., Ltd.: Alloys specialize in both.
- Die Castings China: Provides zinc and aluminum.
- TheDiecasting.com: Specializes in custom jobs.
Check to find the IATF 16949 quality certification in the automotive sector.
다이캐스팅의 미래 트렌드
In the industry, there is a change in:
- Alloy Innovations: Zinc-aluminum alloys.
- Robotization: AI in defect detection.
- Sustainability: Lubricants made of bio-based products.
- EVs can increase the demand for aluminum by 20 percent by 2030.
결론
아연 다이캐스팅 and aluminum die casting both have clear pros and cons. Zinc is best applied to small, intricate parts that are very precise, have a delicate finish, and can be manufactured rapidly and at low cost. It is effective in significant production volumes where tightness is paramount.
Aluminum, in turn, is better suited to lightweight and structural applications, as well as high-temperature applications. Its weight-to-strength ratio, corrosion resistance, and recyclability have made it a preferred material in the automotive, aerospace, and electronic industries.
The right choice would depend on the part size, the load, the working conditions, the production output, and the budget. The critical evaluation of these parameters will enable manufacturing companies to select the alloy that provides the ideal performance, cost, and reliability in the long run.
